Output parameters
MCP-H10-A Series
| Characteristic | Symbol | Min | Typ | Max | Unit |
| Min pressure output（0℃ to 85℃）@ VS = 5.0V | Voff | 0.44 | 0.5 | 0.56 | VDC |
| Max pressure output（0℃ to 85℃）@ VS = 5.0V | VFSO | 4.44 | 4.5 | 4.56 | VDC |
| Full scale output（0℃ to 85℃）@VS = 5.0V | VFSS | 3.88 | 4 | 4.12 | VDC |
MCP-H10-B Series
| Characteristic | Symbol | Min | Typ | Max | Unit |
| Min pressure output（0℃ to 85℃）@ VS =3.3V | Voff | 0.055 | 0.1 | 0.145 | VDC |
| Max pressure output（0℃ to 85℃）@ VS =3.3V | VFSO | 3.055 | 3.1 | 3.145 | VDC |
| Full scale output（0℃ to 85℃）@VS = 3.3V | VFSS | 2.91 | 3 | 3.09 | VDC |
Function Description

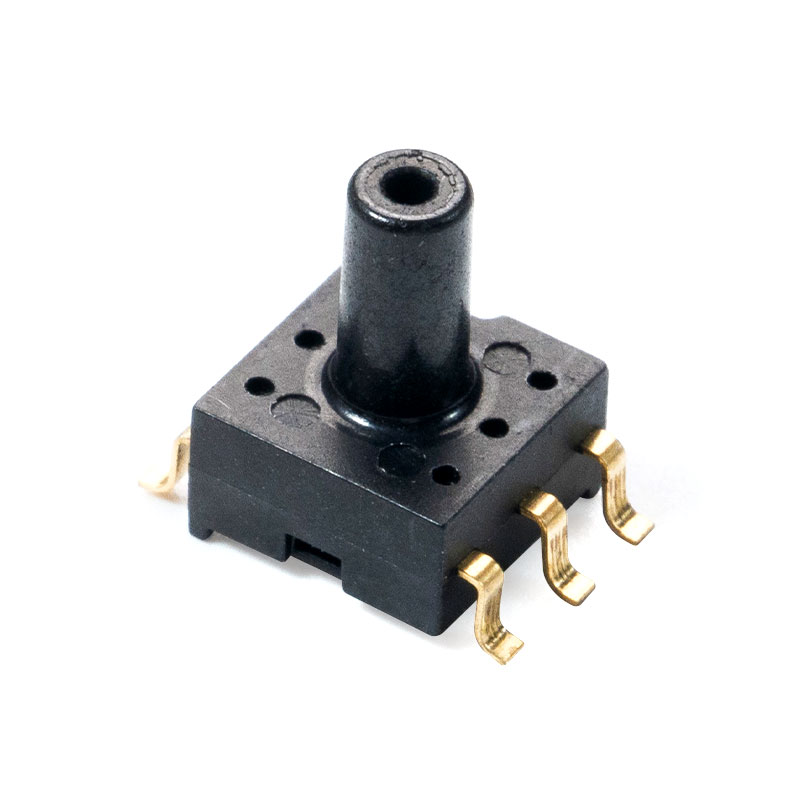

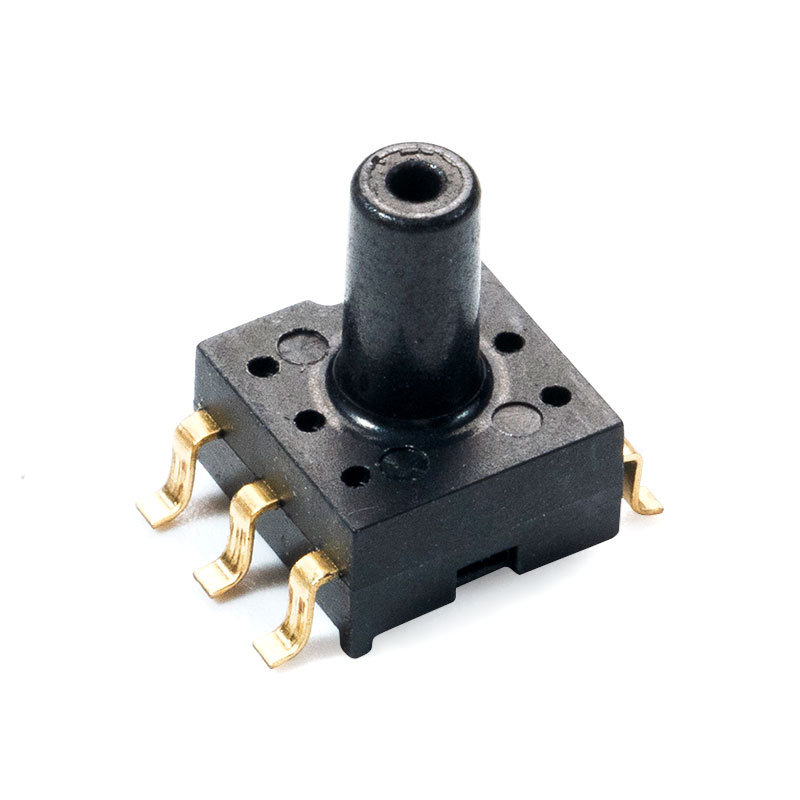

Overview
The MCP-H10 series pressure sensor uses a MEMS piezoresistive pressure chip as a pressure sensing element, which outputs a raw signal proportional to the environmental pressure. A conditioning chip with a built-in 24 bit ADC drives the sensitive element, amplifies its original signal, compensates for temperature, and linearity, and outputs an analog voltage output signal that is linearly related to the applied pressure.
Transfer function
 |
 |

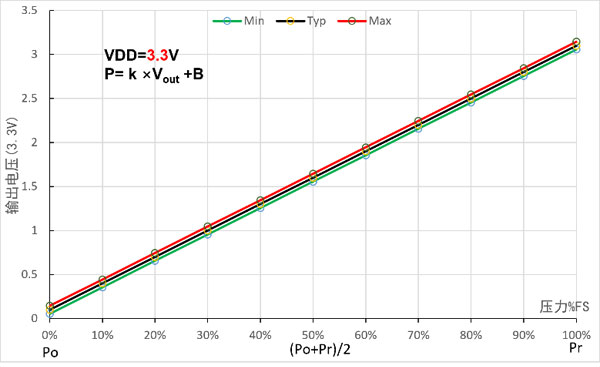

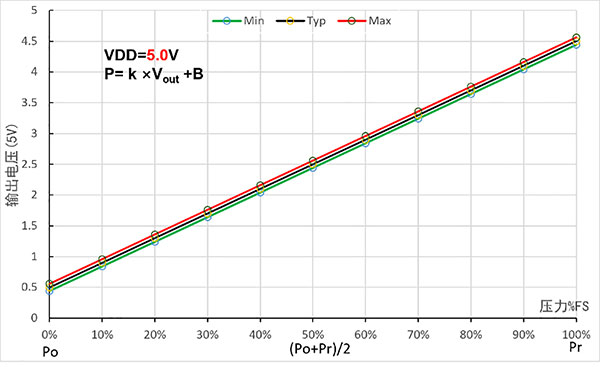

Figure 3.1 Analog Output Transfer Function
P= k ×Vout +B
Note: Vout is the analog output voltage (unit: V); P is the pressure value (in kPa); k. B represents the linear coefficient and offset, as shown in the table below.
Table 3.1 Analog Output Transfer Function Parameters
| Product model（5.0V） | Range (kPa) | Output voltage(V) | Coefficients and offsets | |||
| Po | Pr | OL | OH | k | B | |
| MCP-H10-A2KP5P | 0 | 2.5 | 0.5 | 4.5 | 0.625 | -0.3125 |
| MCP-H10-A2KP5PN | -2.5 | 2.5 | 0.5 | 4.5 | 1.25 | -3.125 |
| MCP-H10-A5KPP | 0 | 5 | 0.5 | 4.5 | 1.25 | -0.625 |
| MCP-H10-A5KPPN | -5 | 5 | 0.5 | 4.5 | 2.5 | -6.25 |
| MCP-H10-A10KPP | 0 | 10 | 0.5 | 4.5 | 2.5 | -1.25 |
| MCP-H10-A10KPPN | -10 | 10 | 0.5 | 4.5 | 5 | -12.5 |
| MCP-H10-A40KPP | 0 | 40 | 0.5 | 4.5 | 10 | -5 |
| MCP-H10-A40KPN | 0 | -40 | 0.5 | 4.5 | -10 | 5 |
| MCP-H10-A40KPPN | -40 | 40 | 0.5 | 4.5 | 20 | -50 |
| MCP-H10-A100KPP | 0 | 100 | 0.5 | 4.5 | 25 | -12.5 |
| MCP-H10-A100KPN | 0 | -100 | 0.5 | 4.5 | -25 | 12.5 |
| MCP-H10-A100KPPN | -100 | 100 | 0.5 | 4.5 | 50 | -125 |
| MCP-H10-A200KPP | 0 | 200 | 0.5 | 4.5 | 50 | -25 |
| MCP-H10-A200KPPN | -100 | 200 | 0.5 | 4.5 | 75 | -137.5 |
| MCP-H10-A500KPP | 0 | 500 | 0.5 | 4.5 | 125 | -62.5 |
| MCP-H10-A1000KPP | 0 | 1000 | 0.5 | 4.5 | 250 | -125 |
| MCP-H10-A1000KPPN | -100 | 1000 | 0.5 | 4.5 | 275 | -237.5 |
| Product model（3.3V） | Range (kPa) | Output voltage(V) | Coefficients and offsets | |||
| Po | Pr | OL | OH | k | B | |
| MCP-H10-B2KP5P | 0 | 2.5 | 0.1 | 3.1 | 0.833 | -0.083 |
| MCP-H10-B2KP5PN | -2.5 | 2.5 | 0.1 | 3.1 | 1.667 | -2.667 |
| MCP-H10-B05KPP | 0 | 5 | 0.1 | 3.1 | 1.667 | -0.167 |
| MCP-H10-B05KPPN | -5 | 5 | 0.1 | 3.1 | 3.333 | -5.333 |
| MCP-H10-B10KPP | 0 | 10 | 0.1 | 3.1 | 3.333 | -0.333 |
| MCP-H10-B10KPPN | -10 | 10 | 0.1 | 3.1 | 6.667 | -10.667 |
| MCP-H10-B40KPP | 0 | 40 | 0.1 | 3.1 | 13.333 | -1.333 |
| MCP-H10-B40KPN | 0 | -40 | 0.1 | 3.1 | -13.333 | 1.333 |
| MCP-H10-B40KPPN | -40 | 40 | 0.1 | 3.1 | 26.667 | -42.667 |
| MCP-H10-B100KPP | 0 | 100 | 0.1 | 3.1 | 33.333 | -3.333 |
| MCP-H10-B100KPN | 0 | -100 | 0.1 | 3.1 | -33.333 | 3.333 |
| MCP-H10-B100KPPN | -100 | 100 | 0.1 | 3.1 | 66.667 | -106.667 |
| MCP-H10-B200KPP | 0 | 200 | 0.1 | 3.1 | 66.667 | -6.667 |
| MCP-H10-B200KPPN | -100 | 200 | 0.1 | 3.1 | 100 | -110 |
| MCP-H10-B500KPP | 0 | 500 | 0.1 | 3.1 | 166.667 | -16.667 |
| MCP-H10-B1000KPP | 0 | 1000 | 0.1 | 3.1 | 333.333 | -33.333 |
| MCP-H10-B1000KPPN | -100 | 1000 | 0.1 | 3.1 | 366.667 | -136.667 |
