MCP-H10 Pressure sensor for consumer electronics

General Description

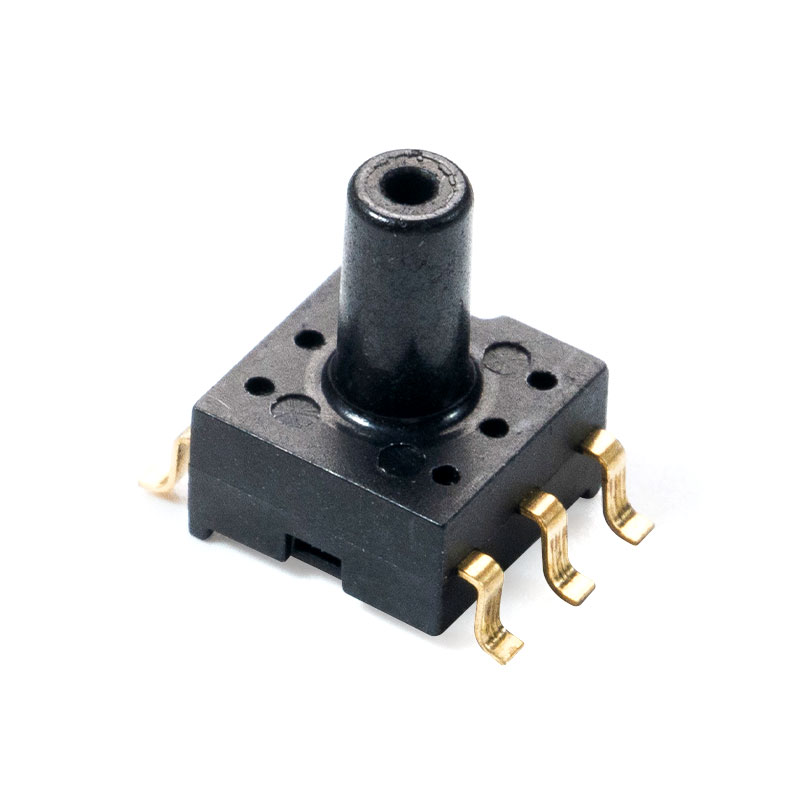

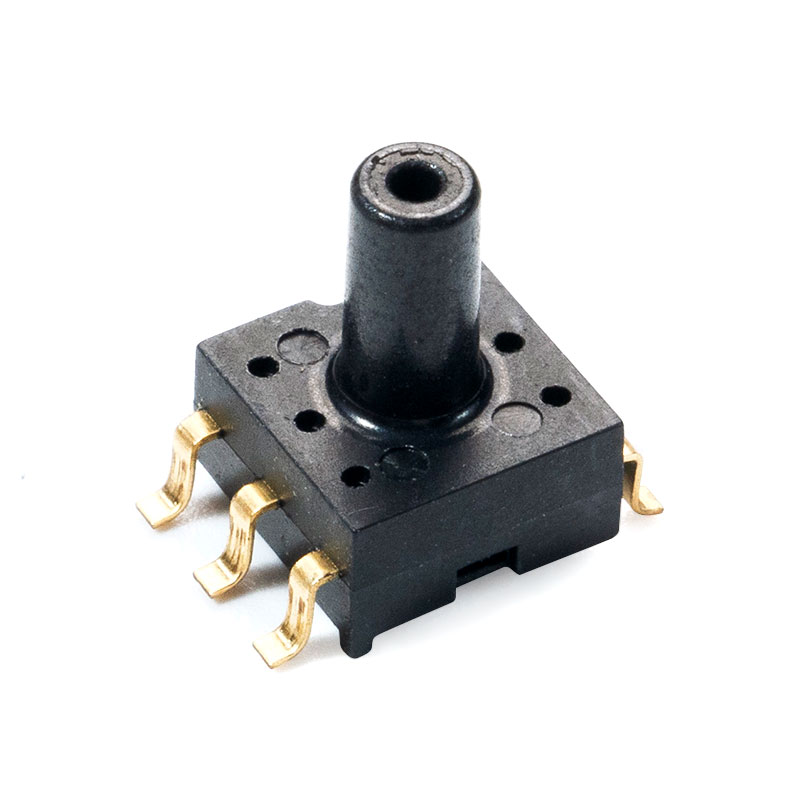

The MCP-H10 series is a small-sized package (SOP) with a nozzle, which integrates signal amplification, nonlinearity, and temperature compensation for silicon piezoresistive pressure sensors. The MCP-H10 series pressure sensor is a product that uses advanced MEMS technology and is specifically designed for consumer electronics and medical applications. The pressure sensor can be directly soldered onto a PCB board, providing an accurate and high-amplitude analog voltage output signal that is proportional to the applied pressure.

Features

Measuring range: -100kPa~1000kPa
Absolute analog output with a wide linear range (typical values of 0.5V~4.5V) (note: output voltage can be customized)
Power supply voltage 5.0V (3.3V optional)
Operating temperature range -20 to +85 ℃
Storage temperature range -40 to +125 ℃

Typical Applications

Industrial use: pressure switches and pneumatic components
Medical use: blood pressure meter, oxygen generator
Water level detection of household appliances: washing machines, dishwashers, vacuum cleaners
Air pressure control: clean rooms and smoking rooms
Other: Air pressure medium pressure sensing device

Structure performance

Pressure-sensitive chip: silicon
Lead wire: gold wire
Sealing shell: PPS material
Pin: Copper plated with gold
Net weight: approximately 0.3 grams

Contact US
PREV：No previous article
NEXT：MCP-J10 Pressure sensor for consumer electronics

Electrical specifications

Characteristic Symbol Min Typ Max Unit
Voltage @ Vs=5.0V (MCP-H10-A series) VS 4.75 5 5.25 VDC
Voltage @ Vs=3.3V (MCP-H10-B series) VS 3 3.3 3.6 VDC
Working current Io —   3 mADC
Accuracy (0 ℃ to 85 ℃) — — — 1.5 %VFSS
ADC resolution RESADC — 24 — bit
DAC resolution RESDAC — 12 — bit
Frequency Fsys   1   MHz
Response time tR — 2.5 — mS
Start Time — — 100 — mS
ESD Protection — — 2 — KV
