MCP-H10, MCP-H20, MCP5XXX, MCP7XXX Analog signal sensor

General Description (MCP-H10)

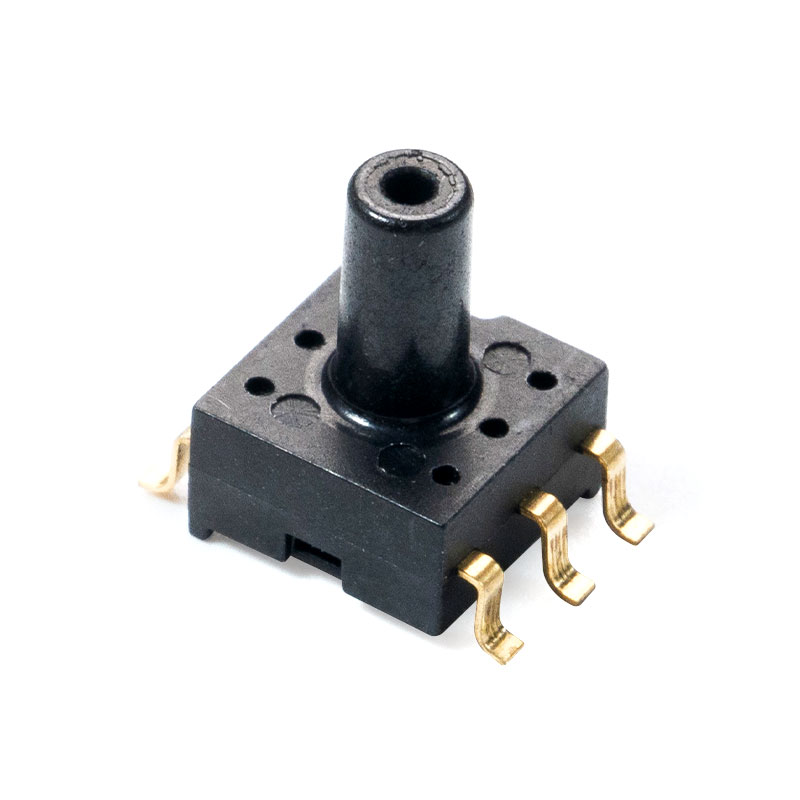

The MCP-H10 series is a small-sized package (SOP) with a nozzle, which integrates signal amplification, nonlinearity, and temperature compensation for silicon piezoresistive pressure sensors. The MCP-H10 series pressure sensor is a product that uses advanced MEMS technology and is specifically designed for consumer electronics and medical applications. The pressure sensor can be directly soldered onto a PCB board, providing an accurate and high-amplitude analog voltage output signal that is proportional to the applied pressure.

Features
Measuring range: -100kPa~1000kPa
Absolute analog output with a wide linear range (typical values of 0.5V~4.5V) (note: output voltage can be customized)
Power supply voltage 5.0V (3.3V optional)
Operating temperature range -20 to +85 ℃
Storage temperature range -40 to +125 ℃

Typical Applications
Industrial use: pressure switches and pneumatic components
Medical use: blood pressure meter, oxygen generator
Water level detection of household appliances: washing machines, dishwashers, vacuum cleaners
Air pressure control: clean rooms and smoking rooms
Other: Air pressure medium pressure sensing device

Structure performance
Pressure-sensitive chip: silicon
Lead wire: gold wire
Sealing shell: PPS material
Pin: Copper plated with gold
Net weight: approximately 0.3 grams

Description (MCP-H20)

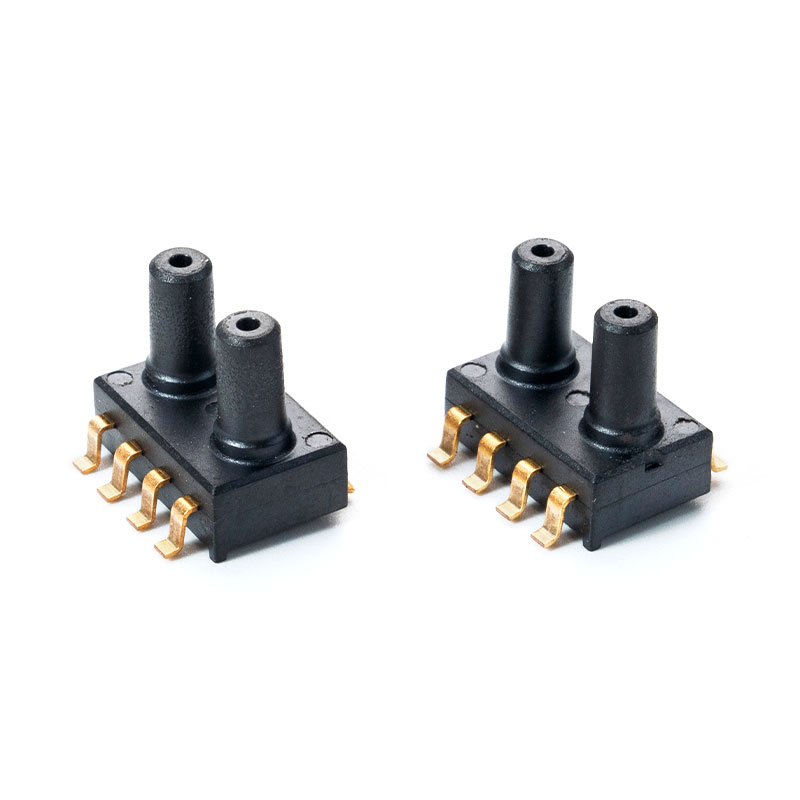

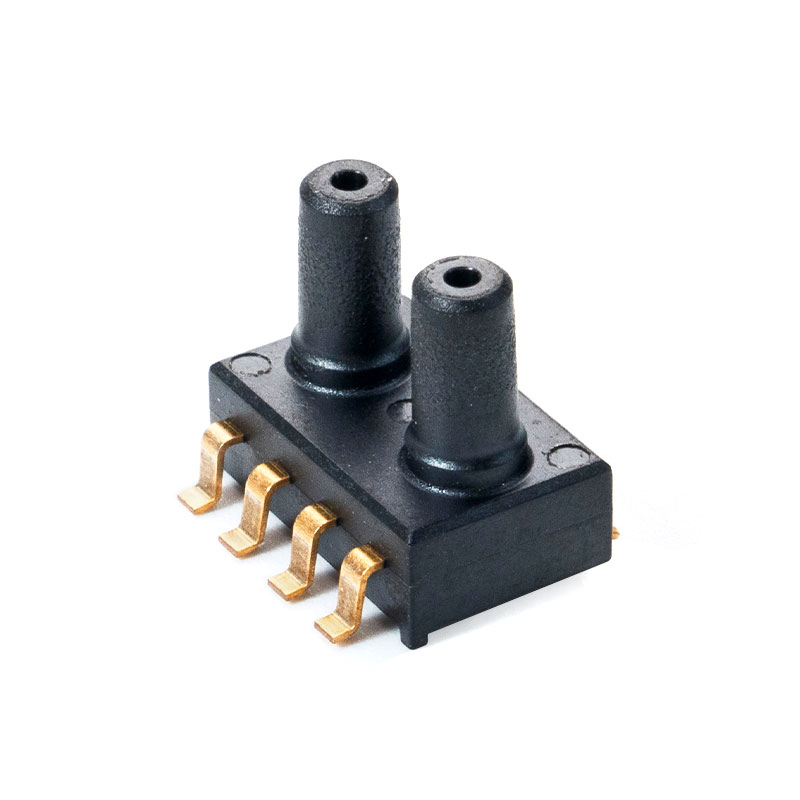

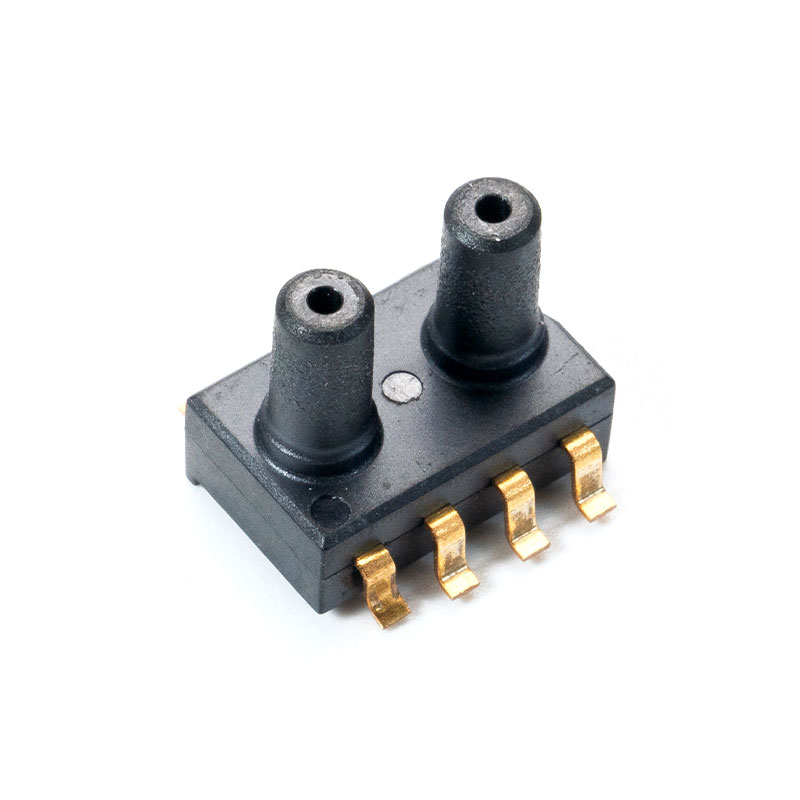

The MCP-H20 series is a small outline package (SOP) with dual pressure ports, incorporating a silicon piezoresistive pressure sensor that integrates signal amplification, nonlinearity, and temperature compensation. Utilizing advanced MEMS technology, the MCP-H20 series pressure sensor is tailored for consumer electronics and medical applications. It can be directly surface-mounted and soldered onto a PCB board, delivering an accurate, high-amplitude analog voltage output signal that is directly proportional to the applied pressure.

Features
Power supply voltage: 5.0V (3.3V optional)
Pressure range: -100kPa to 0, 200kPa
Working current: <3mA
Analog voltage output
Operation temperature: -20 to +85℃
Storage temperature range -40 to +125 ℃

Typical Applications
Blocked Filter Detection
Altitude and Airspeed Measurements
Medical Instruments
Fire Suppression System
Panel Meter
Air Movement/Environmental Controls
Pneumatic Controls

Structure performance
Pressure sensitive chip: silicon
Lead wire: gold wire
Sealing shell: PPS material
Pin: Copper plated with gold
Net weight: approximately 0.3 grams

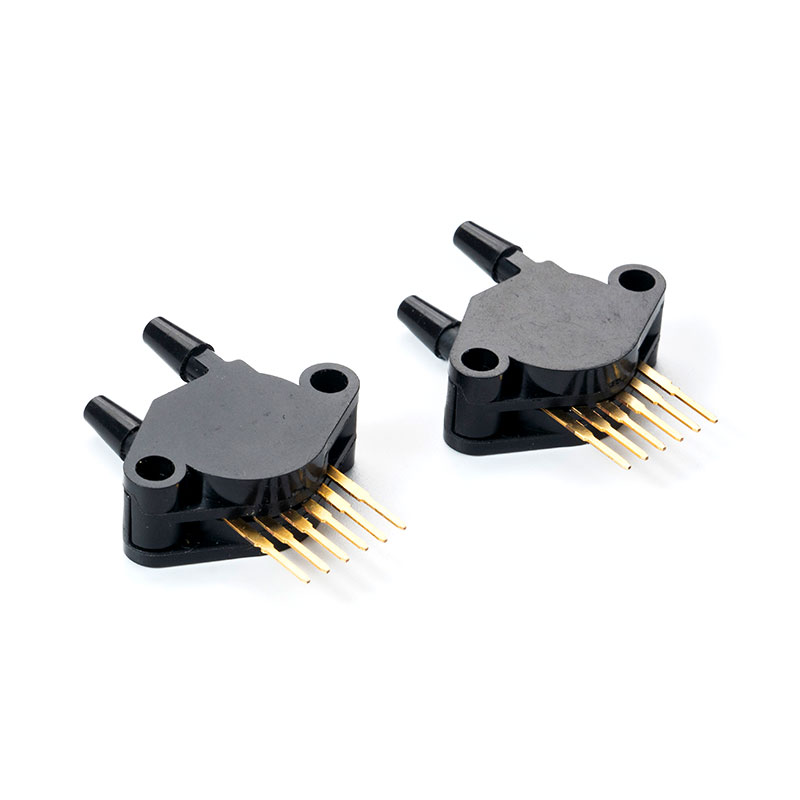

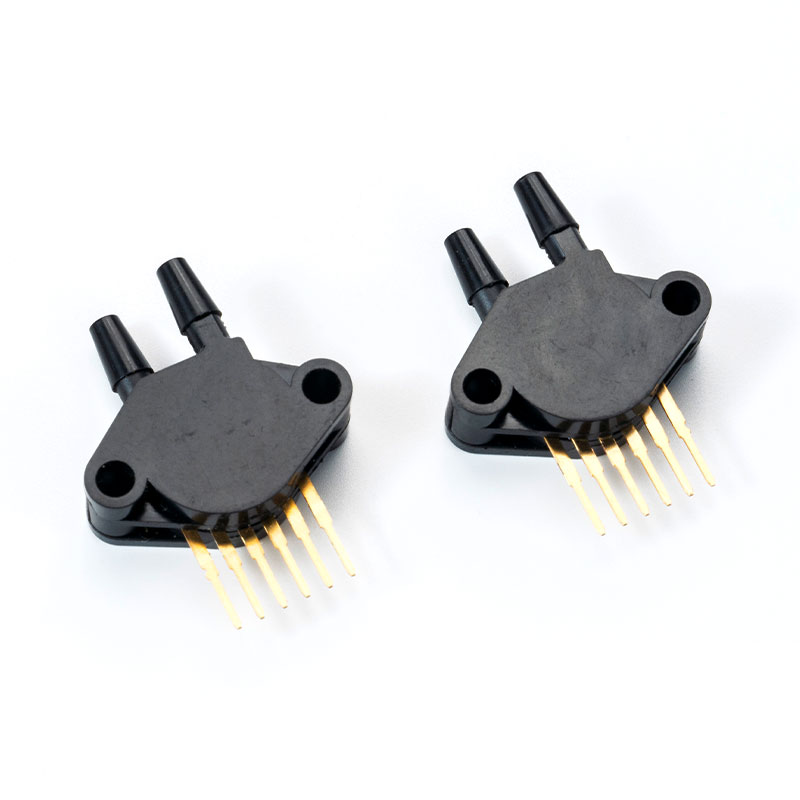

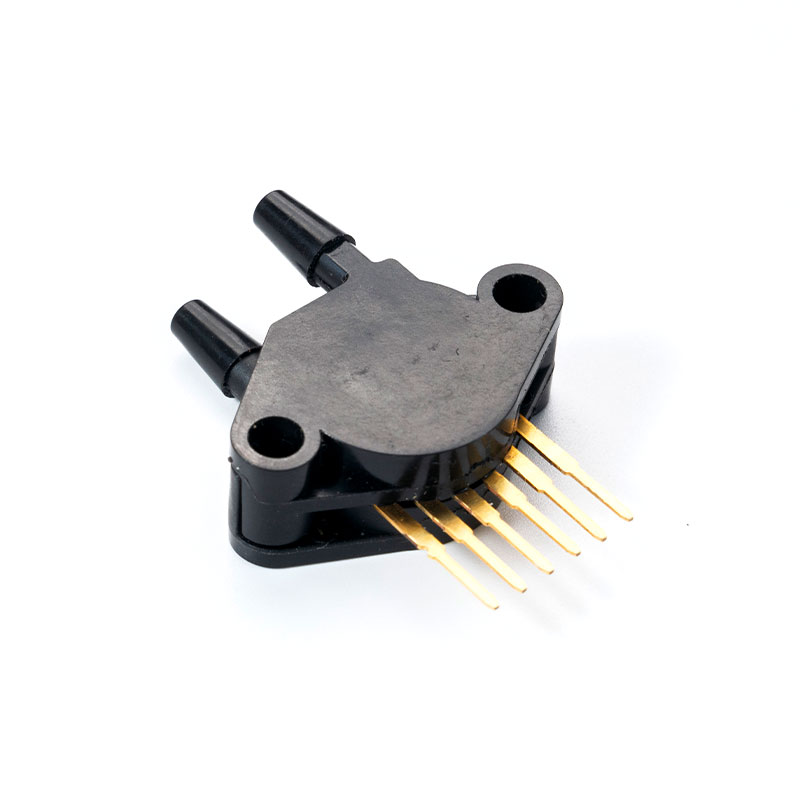

The MCP5XXXDP series has an integrated silicon pressure sensor
Signal conditioning, temperature compensation, and calibration (MCP5XXXDP)

1 General description
The MCP5XXXDP piezoresistive transducers are monolithic silicon pressure sensors. The MCP5XXXDP is designed for a wide range of applications, particularly applications employing a microcontroller or microprocessor with analog-to-digital inputs. This transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high-level analog output signal that is proportional to the applied pressure.

2 Features and benefits
1. Optional pressure range: 0kpa~ 700kpa
2. Type of pressure
Absolute: The internal vacuum reference and the output is proportional to the absolute pressure
Gauge pressure: Based on atmospheric pressure, it provides output and the atmospheric pressure change
proportional
Differential Pressure: Allows the measurement of pressure at two pressure ports
3. Temperature compensated over +10 °C to +60 °C
4. Storage temperature -40°C to +125°C
5. Material: Durable epoxy integrated encapsulated shell, air valve shell adopted, High-temperature nylon
6. Output signal: Analog signal

3 Fields of application
1. Medical: Monitors, Anesthesia Machines, Blood Analysis Equipment, Gas Chromatography, Gas Instrumentation, Ward Air Pressure, Kidney Dialysis Machines, Nebulizers, Pneumatic Controls, Respiratory Machines, Sleep Apnea Equipment, Spirometers, Ventilators
2. Industrial: Barometric Pressure Measurement, Drones, Measurement Calibrators, Gas Chromatography, Gas Measuring Instruments, Transmitters, Indoor Air Quality, Life Sciences, Pneumatic Control, Weather Balloons.

Electrical specifications(MCP-H10)

Characteristic	Symbol	Min	Typ	Max	Unit
Voltage @ Vs=5.0V (MCP-H10-A series)	V_S	4.75	5	5.25	VDC
Voltage @ Vs=3.3V (MCP-H10-B series)	V_S	3	3.3	3.6	VDC
Working current	Io	—		3	mADC
Accuracy (0 ℃ to 85 ℃)	—	—	—	1.5	%V_FSS
ADC resolution	RES_ADC	—	24	—	bit
DAC resolution	RES_DAC	—	12	—	bit
Frequency	Fsys		1		MHz
Response time	t_R	—	2.5	—	mS
Start Time	—	—	100	—	mS
ESD Protection	—	—	2	—	KV

Electrical parameters (MCP-H20)

Characteristic	Symbol	Min	Typ	Max	Unit
Vs=5.0V (MCP-H20-A series)	V_S	4.75	5	5.25	VDC
Vs=3.3V (MCP-H20-B series)	V_S	3	3.3	3.6	VDC
Working current	I_o	—		3	mADC
Accuracy（0℃ to 85℃）	—	—	—	1.5	%V_FSS
ADC resolution	RES_ADC	—	24	—	bit
DAC resolution	RES_DAC	—	12	—	bit
Response time	t_R	—	2.5	—	ms
Warm-up time	—	—	100	—	ms
ESD Protection	—	—	2	—	kV

Output parameters(MCP-H20)

MCP-H20-A series (Power Supply Voltage: 5.0V)

Characteristic	Symbol	Min	Typ	Max	Unit
Min pressure offset (0℃ to 85℃)	V_off	0.44	0.5	0.56	VDC
Full-scale output (0℃ to 85℃)	V_FSO	4.44	4.5	4.56	VDC
Full-scale span (0℃ to 85℃)	V_FSS	3.88	4	4.12	VDC

MCP-H20-B series (Power Supply Voltage: 3.3V)

Characteristic	Symbol	Min	Typ	Max	Unit
Min pressure offset (0℃ to 85℃)	V_off	0.055	0.1	0.145	VDC
Full-scale output (0℃ to 85℃)	V_FSO	3.055	3.1	3.145	VDC
Full-scale span (0℃ to 85℃)	V_FSS	2.91	3	3.09	VDC

1. General specifications(MCP5XXXDP)

Table 1. Limit parameters

Characteristic	Symbol	Min	Typ	Max	Unit
Min pressure offset (0℃ to 85℃)	Voff	0.055	0.1	0.145	VDC
Full-scale output (0℃ to 85℃)	VFSO	3.055	3.1	3.145	VDC
Full-scale span (0℃ to 85℃)	VFSS	2.91	3	3.09	VDC

Table 2. Type of pressure

Type of pressure	description
Absolute	The output is proportional to the difference between the applied pressure and the built-in reference vacuum
Gauge pressure	The output is proportional to the difference between the applied pressure and the atmospheric (ambient) pressure
Differential pressure	The output is proportional to the difference between the pressure applied to each port (port 1 – port 2).

2. The analog output technical parameters(MCP5XXXDP)

Table 3. Analog output specifications

(VS = 5.0 Vdc, TA = 25 °C unless otherwise noted. )

Characteristic	Symbol	Min	Typ	Max	Unit
Pressure range⁽¹⁾	P_OP	0	—	100	kPa
Pressure range⁽¹⁾	P_OP	15	—	115	kPa
Supply voltage⁽²⁾	V_S	4.75	5	5.25	VDC
Supply current	I_O	—	7	10	mAdc
Minimum pressure offset⁽³⁾, (0 to 85 °C) @ VS = 5.0 V	V_OFF	0.088	0.2	0.313	VDC
Full-scale output⁽⁴⁾, differential and absolute (0 to 85 °C) @ VS = 5.0 V	V_FSO	4.587	4.7	4.813	VDC
Full-scale Span⁽⁵⁾, differential and absolute (0 to 85 °C) @ VS = 5.0 V	V_FSS	—	4.5	—	VDC
Accuracy⁽⁶⁾	—	—	—	±2.5	%V_FSS
Sensitivity	V/P	—	45	—	mV/kPa
Response time⁽⁷⁾	t_R	—	1	—	ms
Output source current at full-scale output	I_O+	—	0.1	—	mAdc
Warm-up time⁽⁸⁾	—	—	20	—	ms
Offset stability⁽⁹⁾	—	—	±0.5	—	%V_FSS

1. 1.0 kPa (kiloPascal) equals 0.145 psi.
2. Device is ratiometric within this specified excitation range.
3. Offset (VOFF) is defined as the output voltage at the minimum rated pressure.
4. Full-scale output (VFSO) is defined as the output voltage at the maximum or full-rated pressure.
5. Full-scale span (VFSS) is defined as the algebraic difference between the output voltage at full-rated pressure and the output voltage at the minimum rated pressure.
6. Accuracy (error budget) consists of the following:
Linearity: Output deviation from a straight line relationship with pressure over the specified pressure range.
Temperature hysteresis: Output deviation at any temperature within the operating temperature range, after the temperature is cycled to and from the minimum or maximum operating temperature points, with zero differential pressure applied.
Pressure hysteresis: Output deviation at any pressure within the specified range, when this pressure is cycled to and from minimum or maximum rated pressure at 25 °C.
TcSpan: Output deviation over the temperature range of 0 to 85 °C, relative to 25 °C.
TcOffset: Output deviation with minimum pressure applied over the temperature range of 0 to 85 °C, relative to 25 °C.
Variation from nominal: The variation from nominal values, for offset or full-scale span, as a percent of VFSS at 25 °C.
7. Response time is defined as the time for the incremental changed in the output to go from 10% to 90% of its final value when subjected to a specified step change in pressure.
8. Warm-up time is defined as the time required for the product to meet the specified output voltage after the pressure has been stabilized.
9. Offset stability is the product’s output deviation when subjected to 1000 hours of pulsed pressure, temperature cycling with bias test.
