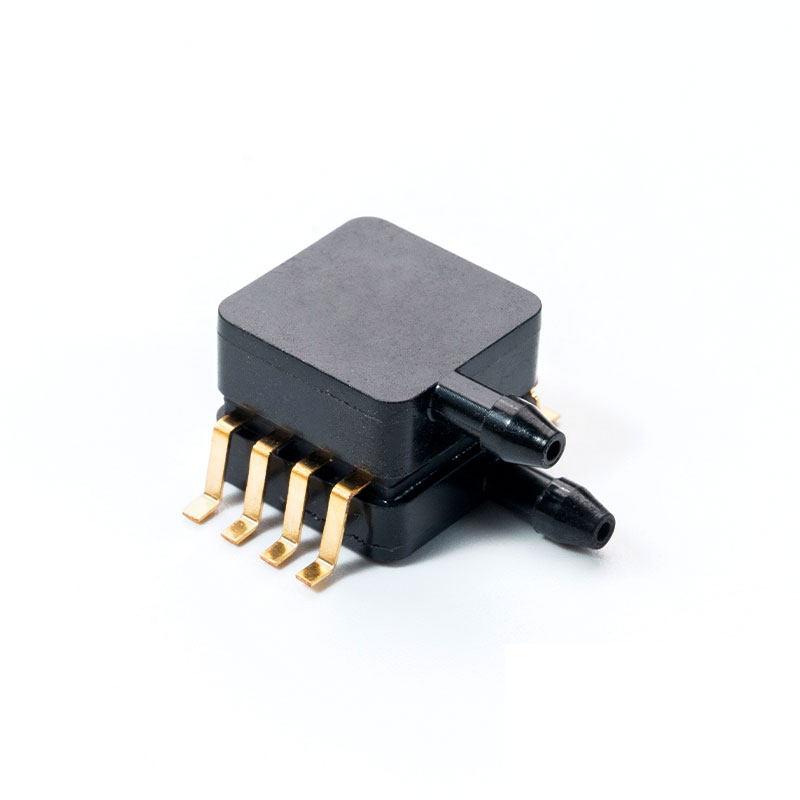

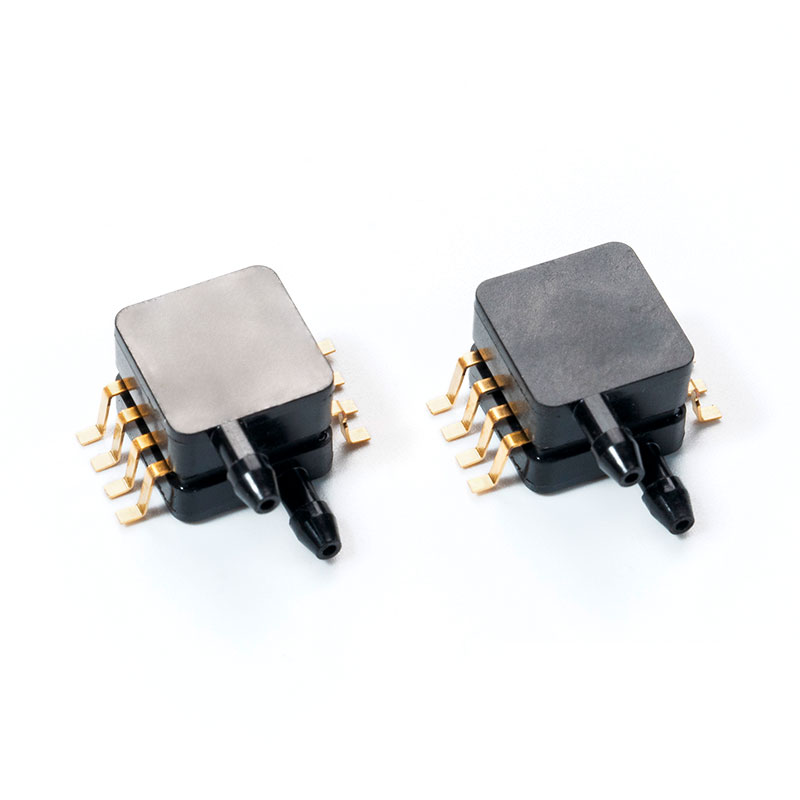

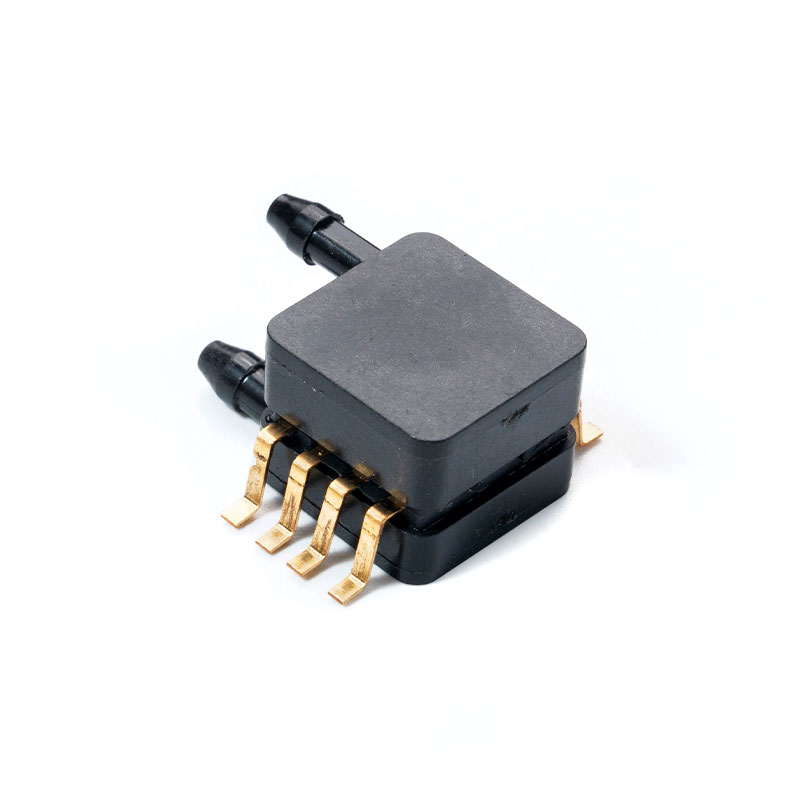

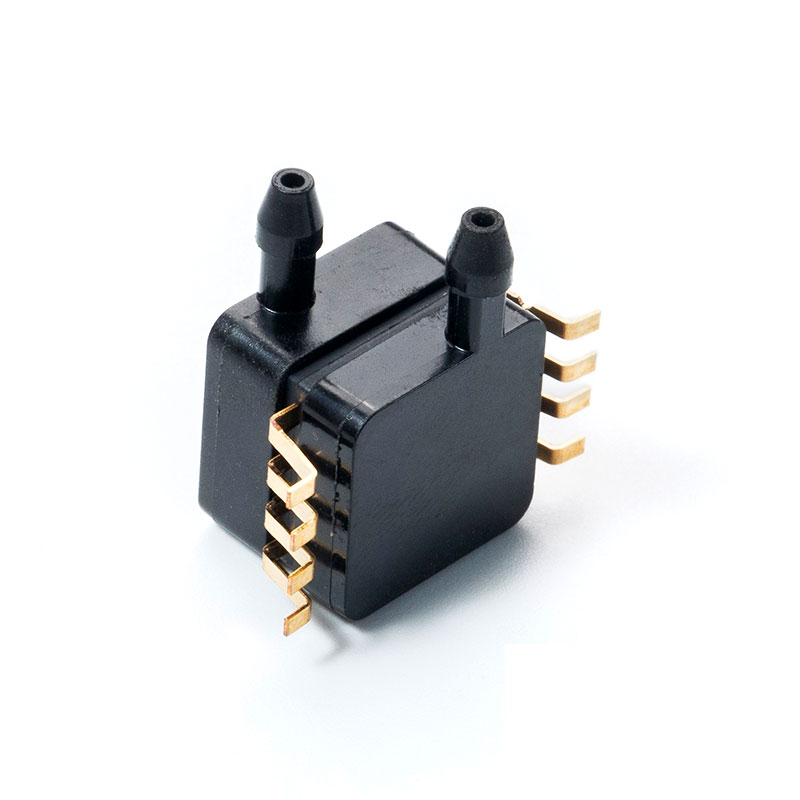

1. General specifications
Table 1. Limit parameters
| Characteristic | Min. | Max. | Unit |
| Supply voltage（Vsupply） | -0.3 | 6 | Vdc |
| Storage temperature | -40 | 125 | ℃ |
Table 2. Type of pressure
| Type of pressure | description |
| Absolute | The output is proportional to the difference between the applied pressure and the built-in reference vacuum |
| Gauge pressure | The output is proportional to the difference between the applied pressure and the atmospheric (ambient) pressure |
| Differential pressure | The output is proportional to the difference between the pressure applied to each port (port 1 – port 2). |
2. The analog output technical parameters
Table 3. Analog output specifications
(VS = 5.0 Vdc, TA = 25 °C unless otherwise noted. )
| Characteristic | sign | Min. | Typ. | Max. | Unit |
| Pressure Range1 | POP | -5 | 100 | kPa | |
| Supply voltage2 | Vs | 4.75 | 5 | 5.25 | Vdc |
| Supply current | Io | — | 3 | 10 | mAdc |
| Pressure offset3(10 °C to 60 °C) @ VS = 5.0 Volts | 0.155 | 0.2 | 0.245 | ||
| Full-scale output4 | 4.655 | 4.7 | 4.745 | ||
| Full Scale Span (VFSS)5 | — | 4.41 | 4.5- | 4.59 | V |
| Accuracy6 | — | — | 2.5% | — | |
| Sensitivity | 0.45 | V/kPa | |||
| Operating temperature range | Tstg | -40 | — | 85 | °C |
| Response time7 | tR | — | 2.5 | — | ms |
| Power-on time8 | 100 | ms |
1.1.0 kPa (kiloPascal) equals 0.145 psi.
2. Device is ratiometric within this specified excitation range.
3. Offset (Voff) is defined as the output voltage at the minimum rated pressure.
4. Full-scale output (VFSO) is defined as the output voltage at the maximum or full rated pressure.
5. Full-scale span (VFSS) is defined as the algebraic difference between the output voltage at full rated pressure and the output voltage at the minimum rated
6. Accuracy (error budget) consists of the following:
• Linearity: Output deviation from a straight-line relationship with pressure over the specified pressure range.
• Temperature hysteresis: Output deviation at any temperature within the operating temperature range, after the temperature is cycled to and from the minimum or maximum operating temperature points, with zero differential pressure applied.
• Pressure hysteresis: Output deviation at any pressure within the specified range, when this pressure is cycled to and from the minimum or maximum rated pressure, at 25 °C.
• TcSpan: Output deviation over the temperature range of 10° to 60 °C, relative to 25 °C.
• TcOffset: Output deviation with minimum rated pressure applied, over the temperature range of 10° to 60 °C, relative to 25 °C.
• Variation from Nominal: The variation from nominal values, for offset or full scale span, as a percent of VFSS, at 25 °C.
7. Response time is defined as the time for the incremental change in the output to go from 10% to 90% of its final value when subjected to a specified step change in pressure.
8.Warm-up time is defined as the time required for the product to meet the specified output voltage after the pressure has been stabilized.
2. The analog output technical parameters
Table 3. Analog output specifications
(VS = 5.0 Vdc, TA = 25 °C unless otherwise noted. )
| Characteristic | sign | Min. | Typ. | Max. | Unit |
| Pressure Range1 | POP | -5 | 5 | kPa | |
| Supply voltage2 | Vs | 4.75 | 5 | 5.25 | Vdc |
| Supply current | Io | - | 3 | 10 | mAdc |
| Pressure offset3(10 °C to 60 °C) @ VS = 5.0 Volts | 0.155 | 0.2 | 0.245 | ||
| Full-scale output4 | 4.655 | 4.7 | 4.745 | ||
| Full Scale Span (VFSS)5 | - | 4.41 | 4.5 | 4.59 | V |
| Accuracy6 | - | - | 2.5% | - | |
| Sensitivity | 0.45 | V/kPa | |||
| Operating temperature range | Tstg | -40 | — | 85 | °C |
| Response time7 | tR | — | 2.5 | — | ms |
| Power-on time8 | 100 | ms |
1.1.0 kPa (kiloPascal) equals 0.145 psi.
2. Device is ratiometric within this specified excitation range.
3. Offset (Voff) is defined as the output voltage at the minimum rated pressure.
4. Full-scale output (VFSO) is defined as the output voltage at the maximum or full rated pressure.
5. Full-scale span (VFSS) is defined as the algebraic difference between the output voltage at full rated pressure and the output voltage at the minimum rated
6. Accuracy (error budget) consists of the following:
• Linearity: Output deviation from a straight-line relationship with pressure over the specified pressure range.
• Temperature hysteresis: Output deviation at any temperature within the operating temperature range, after the temperature is cycled to and from the minimum or maximum operating temperature points, with zero differential pressure applied.
• Pressure hysteresis: Output deviation at any pressure within the specified range, when this pressure is cycled to and from the minimum or maximum rated pressure, at 25 °C.
• TcSpan: Output deviation over the temperature range of 10° to 60 °C, relative to 25 °C.
• TcOffset: Output deviation with minimum rated pressure applied, over the temperature range of 10° to 60 °C, relative to 25 °C.
• Variation from Nominal: The variation from nominal values, for offset or full scale span, as a percent of VFSS, at 25 °C.
7. Response time is defined as the time for the incremental change in the output to go from 10% to 90% of its final value when subjected to a specified step change in pressure.
8. Warm-up time is defined as the time required for the product to meet the specified output voltage after the pressure has been stabilized.
