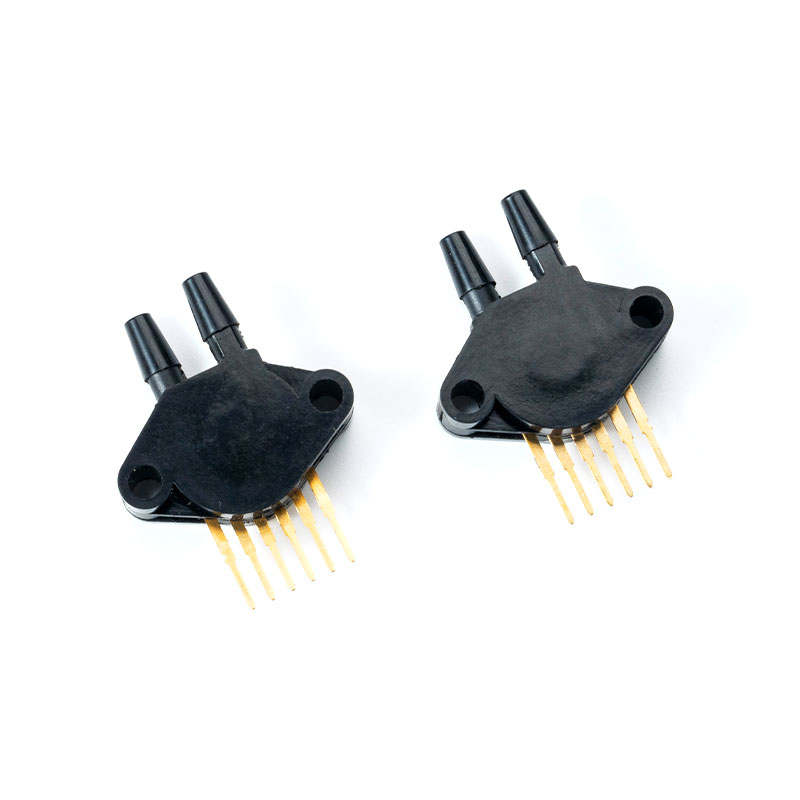

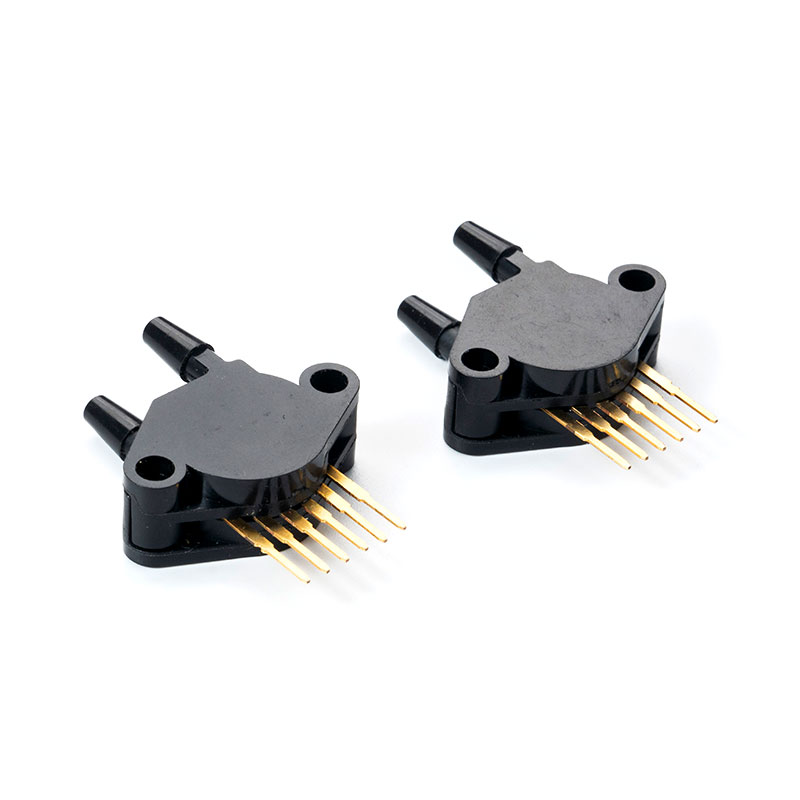

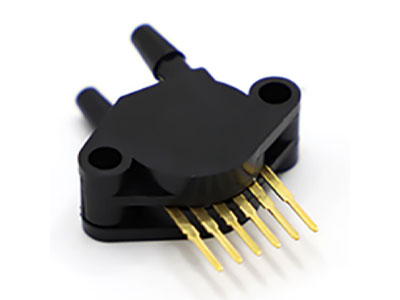

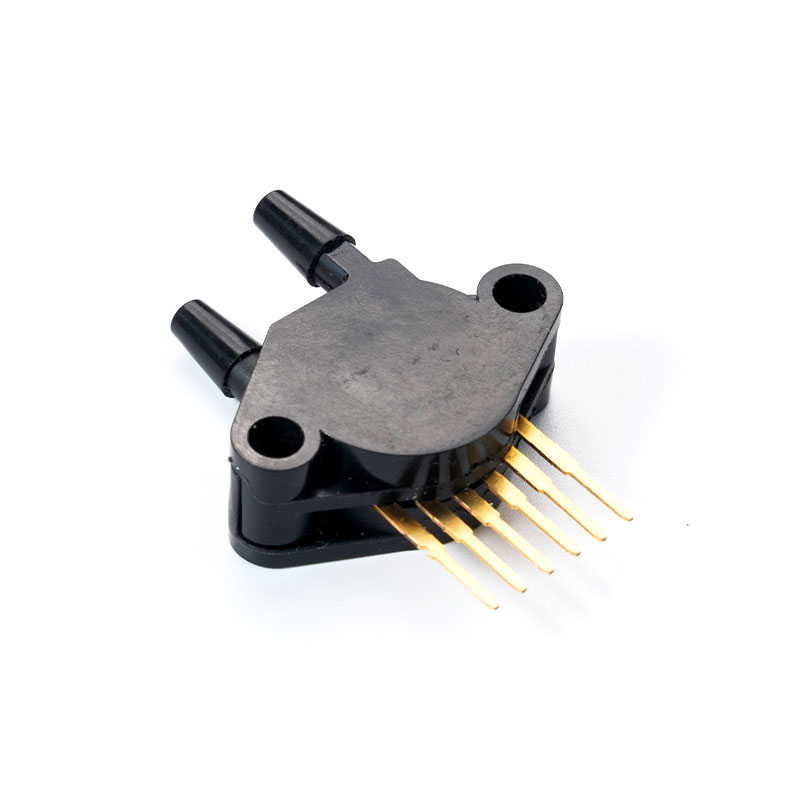

MCP5700DP Pressure sensor for industrial

The MCP5XXXDP series has an integrated silicon pressure sensor
Signal conditioning, temperature compensation, and calibration

1 General description

The MCP5XXXDP piezoresistive transducers are monolithic silicon pressure sensors. The MCP5XXXDP is designed for a wide range of applications, particularly applications employing a microcontroller, or microprocessor with analog-to-digital inputs. This transducer combines advanced micromachining techniques, thin-film metallization, and bipolar processing to provide an accurate, high-level analog output signal that is proportional to the applied pressure.

2 Features and benefits

1. Optional pressure range: 0kpa~ 700kpa
2. Type of pressure
Absolute: The internal vacuum reference and the output proportional to the absolute pressure
Gauge pressure: Based on atmospheric pressure, it provides output and atmospheric pressure change
proportional
Differential Pressure: Allows the measurement of pressure at two pressure ports
3. Temperature compensated over +10 °C to +60 °C
4. Storage temperature -40°C to +125°C
5. Material: Durable epoxy integrated encapsulated shell, air valve shell adopted,High-temperature nylon
6. Output signal: Analog signal

3 Fields of application

1. Medical: Monitors, Anesthesia Machines, Blood Analysis Equipment, Gas Chromatography, Gas Instrumentation, Ward Air Pressure, Kidney Dialysis Machines, Nebulizers, Pneumatic Controls, Respiratory Machines, Sleep Apnea Equipment, Spirometers, Ventilators
2. Industrial: Barometric Pressure Measurement, Drones, Measurement Calibrators, Gas Chromatography, Gas Measuring Instruments, Transmitters, Indoor Air Quality, Life Sciences, Pneumatic Control, Weather Balloons.

Contact US
PREV：MCP-H20 Pressure sensor for industrial
NEXT：No next article

Ordering Guide

Product model Measuring range (kPa) Voltage output range ( V) Accuracy Type of pressure Voltage power supply
Po Pr OL OH Absolute Gauge pressure Differential pressure
Measuring range (kPa) Voltage output range ( V) Accuracy Absolute Gauge pressure Differential pressure Power Supply
MCP4250DP 0 250 0.2 4.9 ±1.4% ● 5V
MCP5050DP 0 50 0.2 4.7 ±2.5% ● 5V
MCP5100DP 0 100 0.2 4.7 ±2.5% ● 5V
MCP5500DP 0 500 0.2 4.7 ±2.5% ● 5V
MCP5700DP 0 700 0.2 4.7 ±2.5% ● 5V
