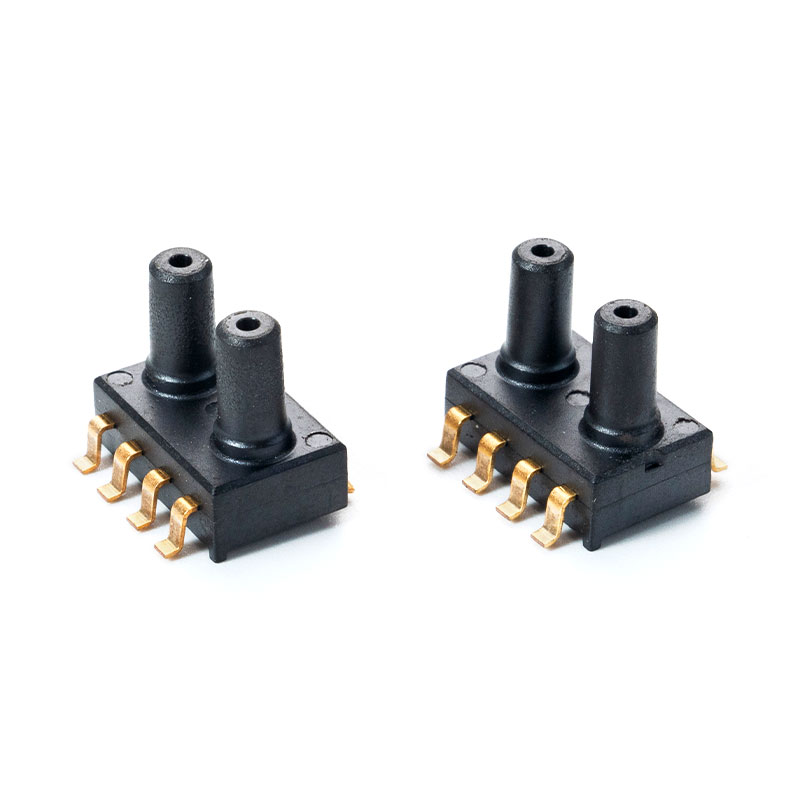

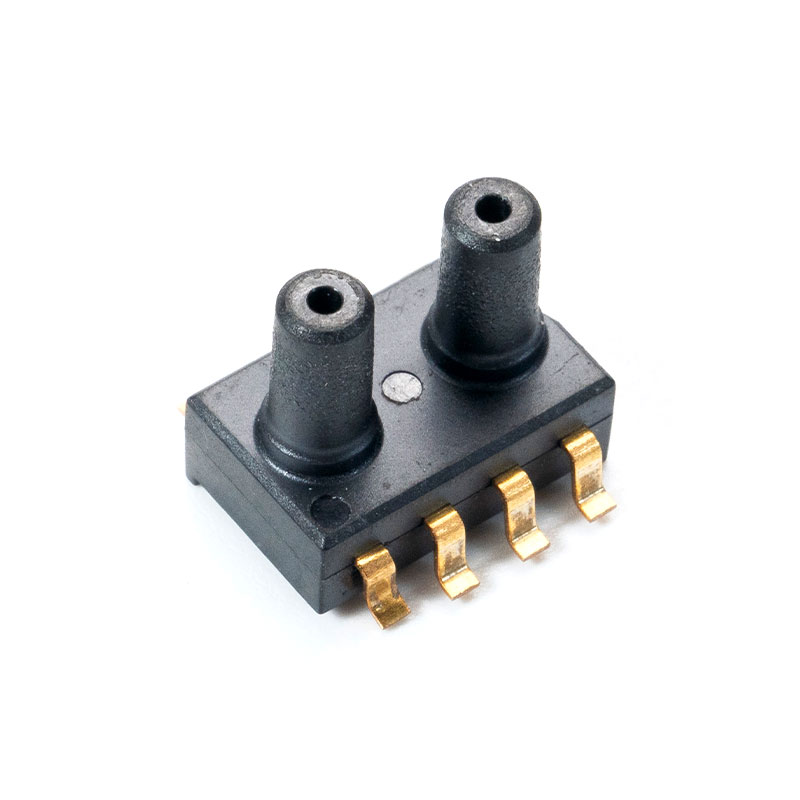

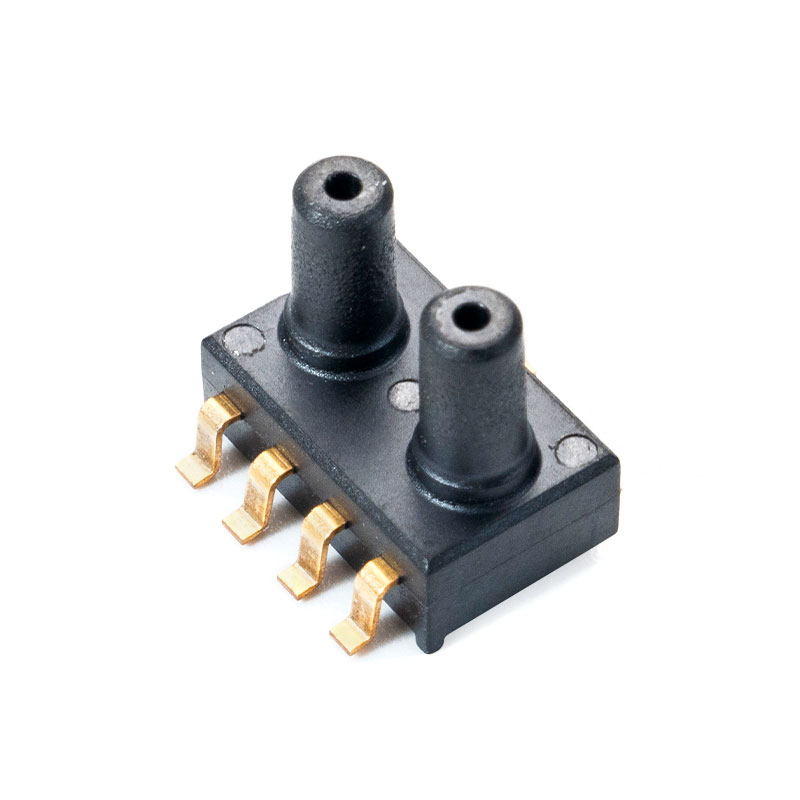

Map of registers
Table of registers:
| Regist er no. | Values | Description |
| 1 | -999-9999 | Differential pressure (limited by measuring range)[ Pa](1 =1 Pa）with sign |
| 2 | 0-1000 | Differential pressure related to range （1 =0.1%;1000= 100%） |
| 3 | 0/1/2/3 | Status log（0: “SENSOR OK”,1: “UNDERLOAD”,2: “OVERLOAD”, 3: “NO SENSOR”）(*) |
| 4 | 1234 | Password log |
| 5 | 1/2/3 | Command log |
| 6 | as per the command table | Parameter log |
| 7 | 0/1 | TAU time constant（0: 0.8s; 1: 4.0s） |
| 8 | 0/1/2/3/4/5/6 | Measuring range(according to the table of measuring ranges) |
| 9 | -999-9999 | Transmitter offset (informative)[ Pa](1 =1 Pa）with sign |
| 10 | -999-9999 | Lower value of the measuring range (informative)[Pa](1 =1 Pa）with sign |
| 11 | -999-9999 | Upper value of the measuring range (informative)[ Pa]（1 = 1 Pa）with sign |
| 12 | 0/1 | Offset calibration (zeroing) status (0: not active; 1: in progress) |
| 13 | 0-65535 | Counter of correct frames |
| 14 | 0-65535 | Exception counter |
| 15 | 0-65535 | CRC error counter |
| 16 | 0-65535 | Byte error counter |
| 17 | 0-65535 | Address error counter |
(*) "SENSOR OK" - correct functioning of the sensor; "UNDERLOAD" - exceeded lower limit;
"OVERLOAD" - exceeded upper limit; 'NO SENSOR - sensor is missing;
Command table:
| Comm and no. | Function | Parameter |
| 1 | Set device address | 1-247 (1-default value |
| 2 | Set transmission rate | 96-9600 b/s(default value) 192-19200 b/s 576-57600 b/s 1152-115200 b/s |
| 3 | Set parity | 0-NO PARITY; no parity bit 1-EVENPARITY;(default value) 2-ODD PARITY, |
| 4 | Set stop bits | 1-1x STOP;1 stop bit(default value) 2-2 x STOP;2 stop bits |
| 5 | Set time constant | 0-0.8s; 1-4.0s; |
| 6 | Set measuring range | ID according to the table of measuring ranges) |
| 7 | Start the calibration process | 1-start offset calibration (zeroing) |
| 8 | Device reset | 1-software device reset |
| Range1 | Range2 | Range3 | Range4 | Range5 | Range6 | Range7 | Range8 |
| 0-25 | 0-50 | 0-100 | 0-250 | -25-25 | -50-50 | -100-100 | -150-150 |
| -100-100 | 0-100 | 0-250 | 0-500 | 0-1000 | 0-1500 | 0-2000 | 0-2500 |
| 0-1000 | 0-1500 | 0-2000 | 0-2500 | 0-3000 | 0-4000 | 0-5000 | 0-7000 |
Notes:
•If you input a wrong or out-of-range parameter value, the value of 0xEEEE shall be entered in the command register.
•Each time the command is called, it must be accompanied by a password (1234 decimal).
•Calling the command through individual registry entries, must be completed by entering the password.
