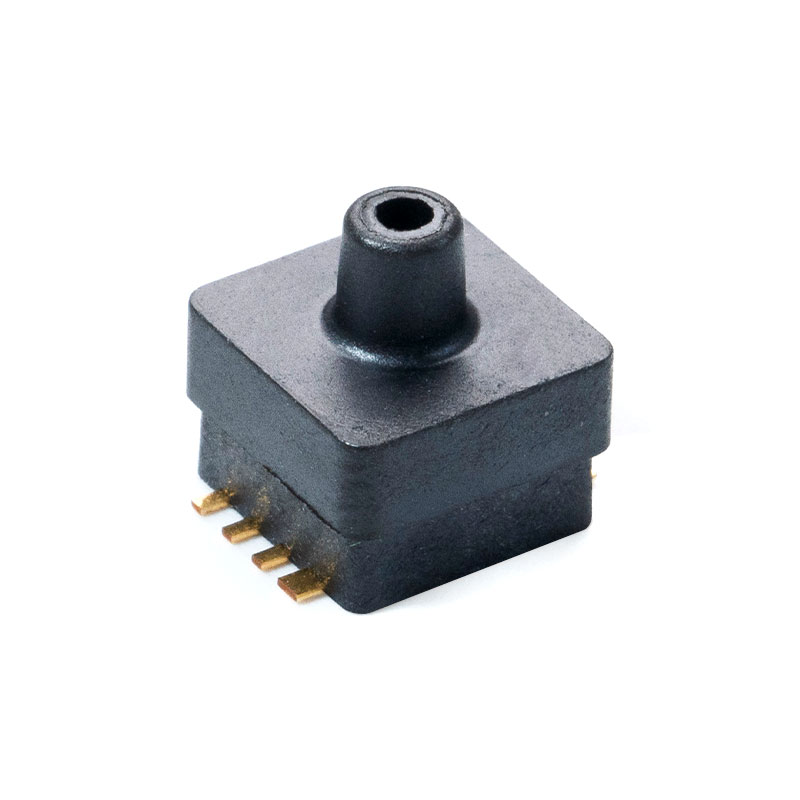

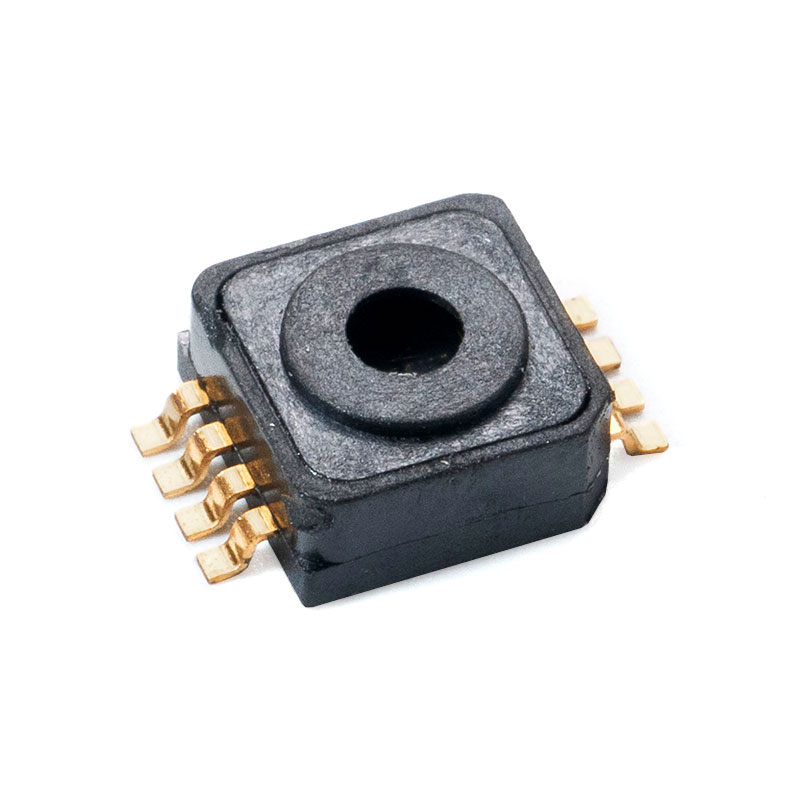

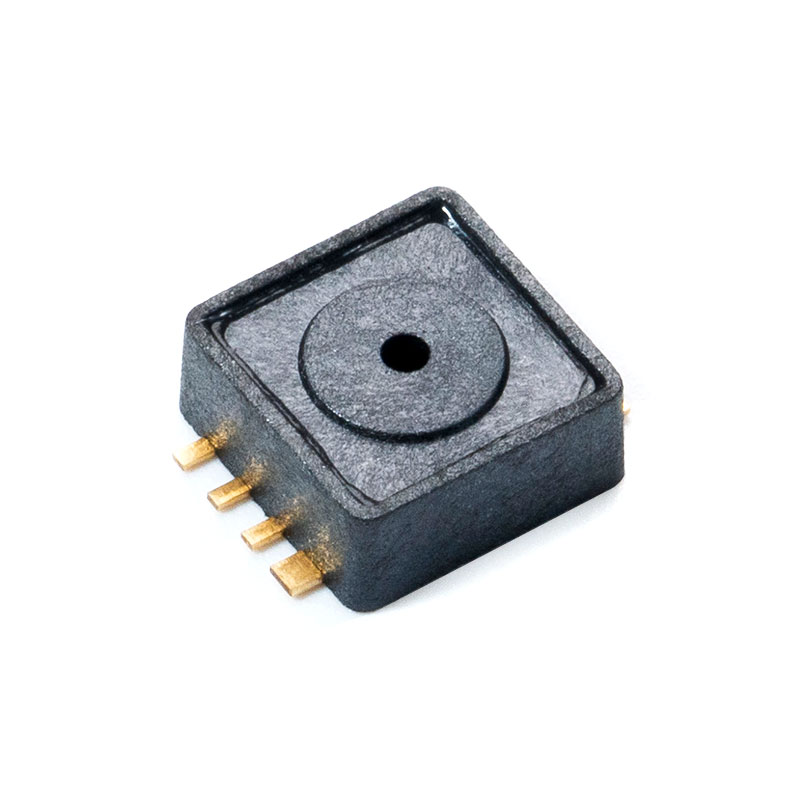

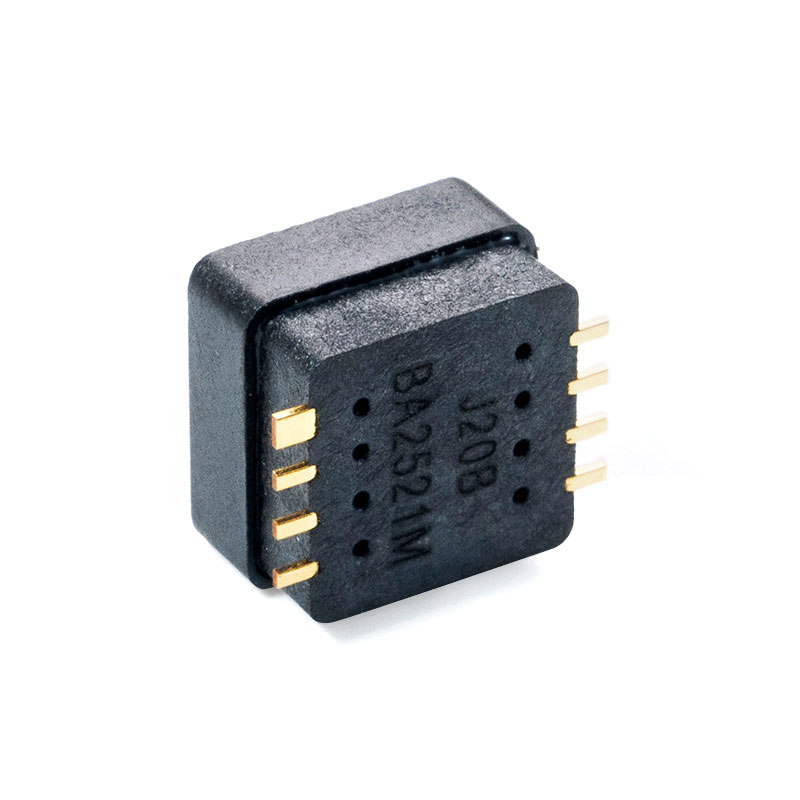

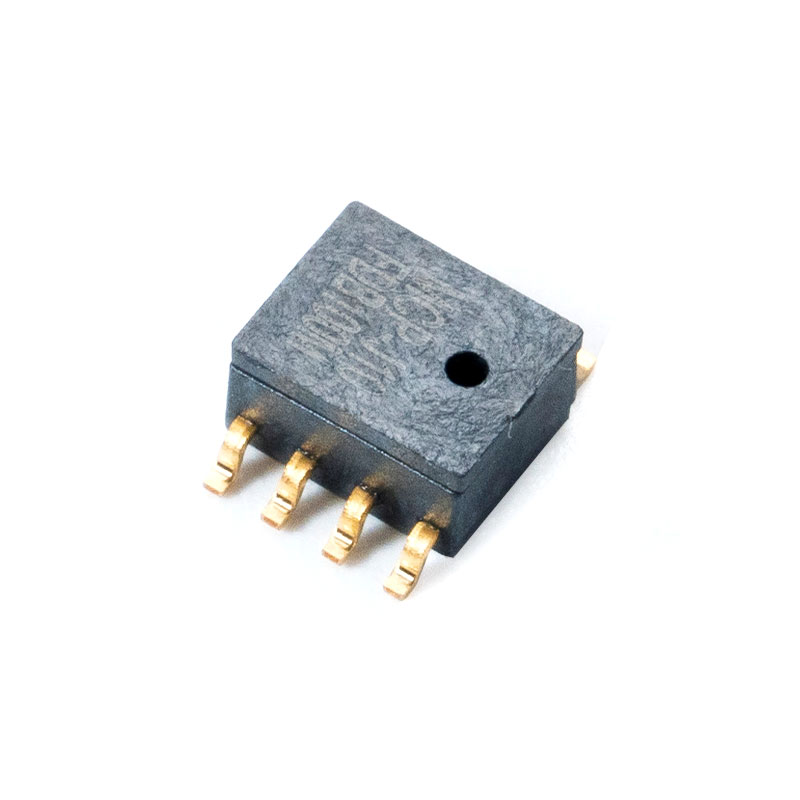

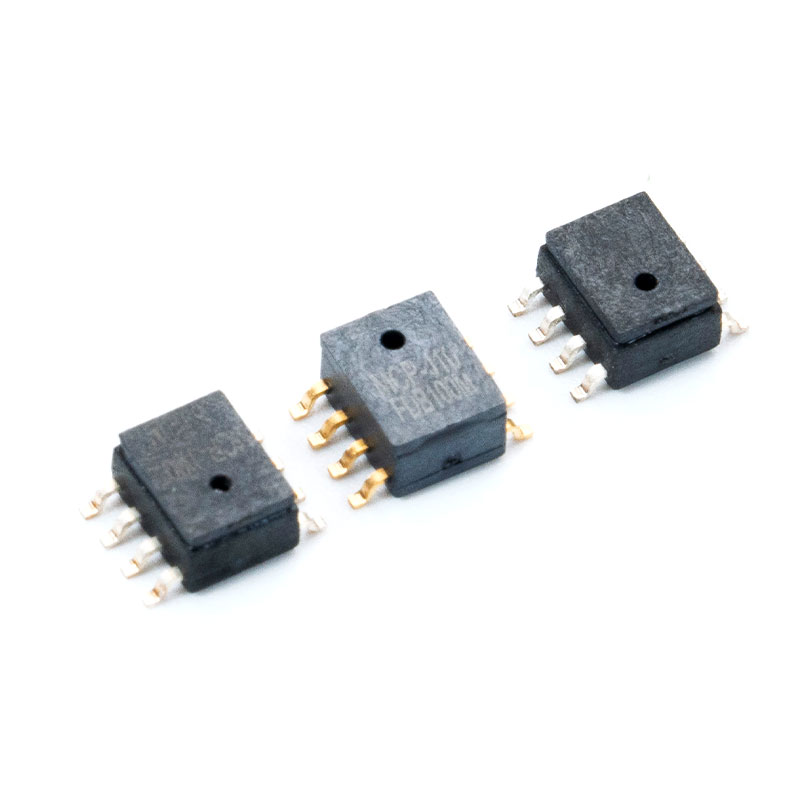

MCP-J10, J20, J20A, J20B, J20C Analog signal sensor

Product Overview

The MCP-J10 series is a calibrated absolute pressure sensor for air pressure measuring. The product uses an automotive grade signal conditioning chip to calibrate and compensate the MEMS output singal, converting pressure signals from 10kPa to 1500kPa into analog output signals (0 to 5V). While ensuring the excellent reliability of the product, the two chips are integrated into the package, greatly reducing the package size. At the same time, the conditioned product provides standard output over the range of temperature and accuracy.

Key Features
2.5% maximum error over 0 °C to 85 °C
Ideally suited for microprocessor or microcontroller-based systems
Subminiature surface mount package
Temperature range -40°C to +125°C
Pressure range is optional between10kPa to 1500kPa
Proportional/absolute analog voltage output

Applications
Automotive applications (manifold Pressure measurement)
Industrial control
Motorcycle pressure application
Hybrid, new energy vacuum power sensor
CNG gas pressure detection

Structural performance
Pressure sensitive chip: silicon material
Lead: Gold wire
Package shell: LCP material
Pin: gold plated copper
Net weight: about 0.4g

DESCRIPTION
The sensor market has launched calibrated absolute pressure sensor products. The MCP-J20 series is designed for pressure transmission in the intake manifold of automobiles and motorcycles
This product uses automotive-grade signal conditioning chips to calibrate and compensate for MEMS core output, and can convert pressure signals from 10kPa to 1000kPa into analog output signals with a customizable output range (0~5V). While ensuring the excellent reliability of the product, the two chips are integrated and packaged, greatly reducing the packaging size. At the same time, the conditioned product can provide standard output within the temperature range and accuracy range, eliminating the need for customers to calibrate the sensor.

Characteristic
The maximum error from 0 ° C to 85 ° C is 2.5%
Very suitable for microprocessors or microcontroller-based systems
Ultra small surface mount packaging
Temperature range: -40 ° C to+125 ° C
Range J20 (A) 10kPa~1000kPa optional
J20(B)10kPa~400kPa
Proportional/Absolute Analog Voltage Output

Typical applications
Automotive applications (manifold pressure measurement)
Industrial control
Motorcycle pressure application
Hybrid and new energy vacuum-assisted sensors
CNG gas pressure detection
Pressure gauge

Absolute Maximum Ratings(MCP-J10)

Parameters	Symbol	Range	Unit
Analog supply voltage	VDD	-0.3 to 6.0	V
Operating temperature		-40 to +125	℃
Storage temperature		-50 to +150	℃
Junction temperature		150	℃
ESD susceptibility	HBM	4	kV

Note: Exceeding the absolute maximum rating may cause permanent damage, and prolonged operation at the above absolute maximum rating may affect the reliability of the device.

Electrical Characteristic(MCP-J10)

Table 1. Operating Characteristics (VS = 5.0 Vdc, TA = 25°C unless otherwise noted)

Parameters	Symbol	Min	Typ	Max	Unit
Supply Voltage	VS	4.75	5	5.25	Vdc
Supply Current	Io	—		3	mAdc
Offset (0°C to 85°C) @ VS = 5.0Volts	Voff	0.44	0.5	0.56	Vdc
Full Scale Output (0°C to 85°C) @ VS = 5.0V	VFSO	4.44	4.5	4.56	Vdc
Full Scale Span (0 ℃ to 85 ℃) @ VS=5.0V	VFSS	3.88	4	4.12	Vdc

Continue Table 1. Operating Characteristics (VS = 5.0 Vdc, TA = 25°C unless otherwise noted)

Parameters	Symbol	Min	Typ	Max	Unit
Accuracy (0°C to 85°C)	—	—	—	2.5	%VFSS
Response Time	tR	—	2.5	—	ms
Warm-Up Time	—	—	100	—	ms
Offset Stability	—	—	0.25	—	%VFSS

Ultimate rated value (MCP-J20)

parameter	symbol	range	unit
Simulate power supply voltage	VDO	-0.3 ~ 6.0	V
Digital Supply voltage	VDOF	-0.3 ~ 2.2	V
Working temperature range		-40 ~125	℃
Storage Temperature Range		-50 ~150	℃
Junction temperature		+150	℃
ESD range	HBM	4KV	V

Note: Exceeding the absolute maximum rated value may cause permanent damage, and prolonged operation at the above absolute maximum rated value may affect the reliability of the device.

Electrical parameters (MCP-J20)

Table 1 Working characteristics (VS=5.0 Vdc, TA=25 ° C unless otherwise specified)

characteristic	sign	minimum	Typical values	maximum	unit
voltage	VS	4.75	5	5.25	Vdc
Power supply current	Io	—		3	mAdc
Minimum pressure output (0 ℃ to 85 ℃) VS=5.0 V	Voff	0.4	0.5	0.6	Vdc
Full range output (0 ℃ to 85 ℃) VS=5.0 volts	VFSO	4.4	4.5	4.6	Vdc
Full range (0 ℃ to 85 ℃) VS=5.0 volts	VFSS	3.8	4	4.2	Vdc
Accuracy (0 ℃ to 85 ℃)	—	—	—	2.5	%VFSS
