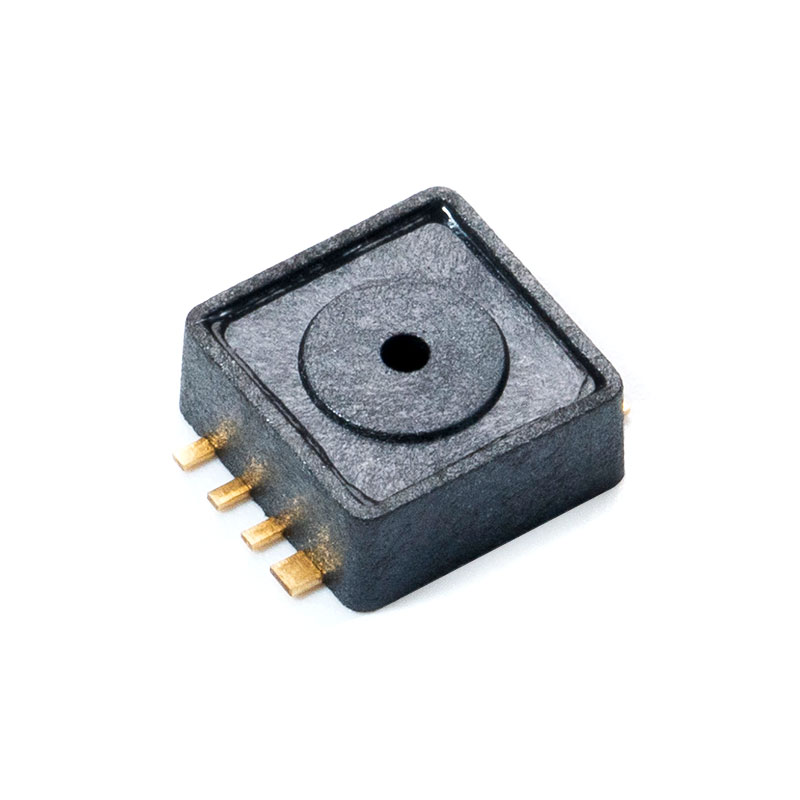

MCP-J20 Absolute pressure sensor
  • MCP-J20 Absolute pressure sensor
  • MCP-J20 Absolute pressure sensor
  • MCP-J20 Absolute pressure sensor

MCP-J20 Absolute pressure sensor

Description
The sensor market has launched calibrated absolute pressure sensor products. The MCP-J20 series is designed for pressure transmission in the intake manifold of automobiles and motorcycles
This product uses automotive-grade signal conditioning chips to calibrate and compensate for MEMS core output, and can convert pressure signals from 10kPa to 1000kPa into analog output signals with a customizable output range (0~5V). While ensuring the excellent reliability of the product, the two chips are integrated and packaged, greatly reducing the packaging size. At the same time, the conditioned product can provide standard output within the temperature range and accuracy range, eliminating the need for customers to calibrate the sensor.



Characteristic

The maximum error from 0 ° C to 85 ° C is 2.5%
Very suitable for microprocessors or microcontroller-based systems
Ultra small surface mount packaging
Temperature range: -40 ° C to+125 ° C
Range J20 (A) 10kPa~1000kPa optional J20(B)10kPa~400kPa
Proportional/Absolute Analog Voltage Output



Typical applications

Automotive applications (manifold pressure measurement)
Industrial control
Motorcycle pressure application
Hybrid and new energy vacuum-assisted sensors
CNG gas pressure detection
Pressure gauge

Contact US
PREV：MCP-J20A, J20B, J20C Absolute pressure sensor
NEXT：MCP-J10, J11, J12 Absolute pressure sensor

Overview

The MCP-J20 series pressure sensor uses a MEMS piezoresistive core as a pressure sensitive element, which outputs a raw signal proportional to the ambient pressure. The conditioning chip with a built-in 16 bit ADC drives the sensitive component and amplifies, temperature compensates, and linearizes the original signal to output an analog voltage output signal that is linearly related to the applied pressure.。



Transfer function

OUT=A×P+B
attention：
OUT is the analog output voltage, measured in volts;
P is the pressure value, absolute pressure, in kPa;
See the table below for A and B.

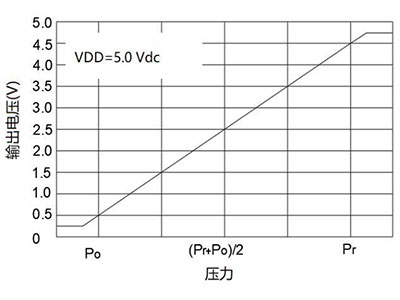

Figure 3.1 Simulated Output Transfer Function

Product Model Range (kPa) Output Voltage Range (V) Gain and Offset
Po Pr OL OH A B
MCP-J20-15115K 15 115 0.5 4.5 0.04 0.1
MCP-J20-20250K 20 250 0.5 4.5 0.0173915 0.152174
MCP-J20-20400K 20 400 0.5 4.5 0.0105265 0.2894735






Mems
