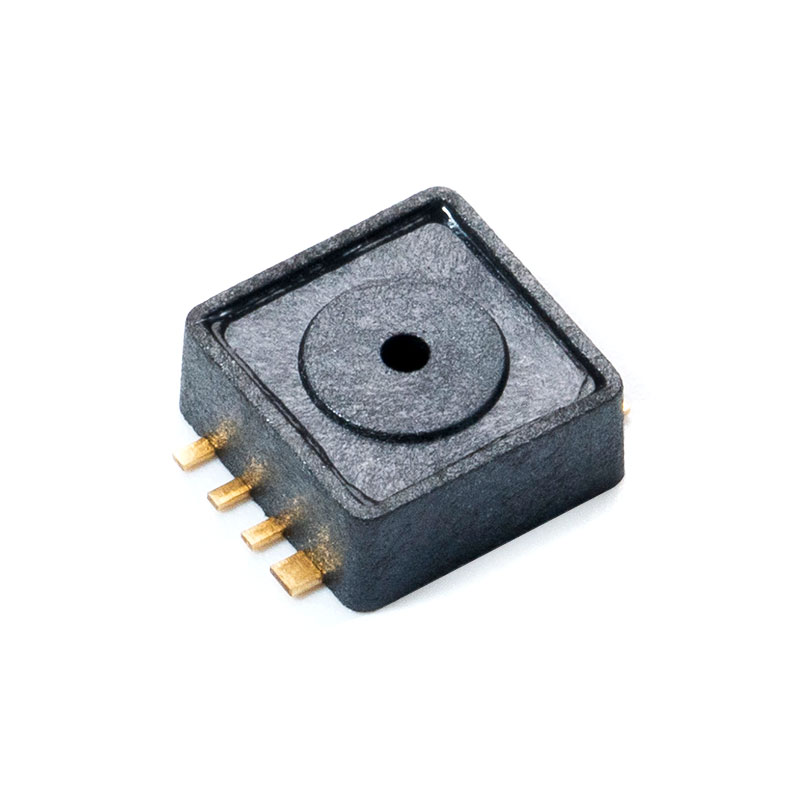

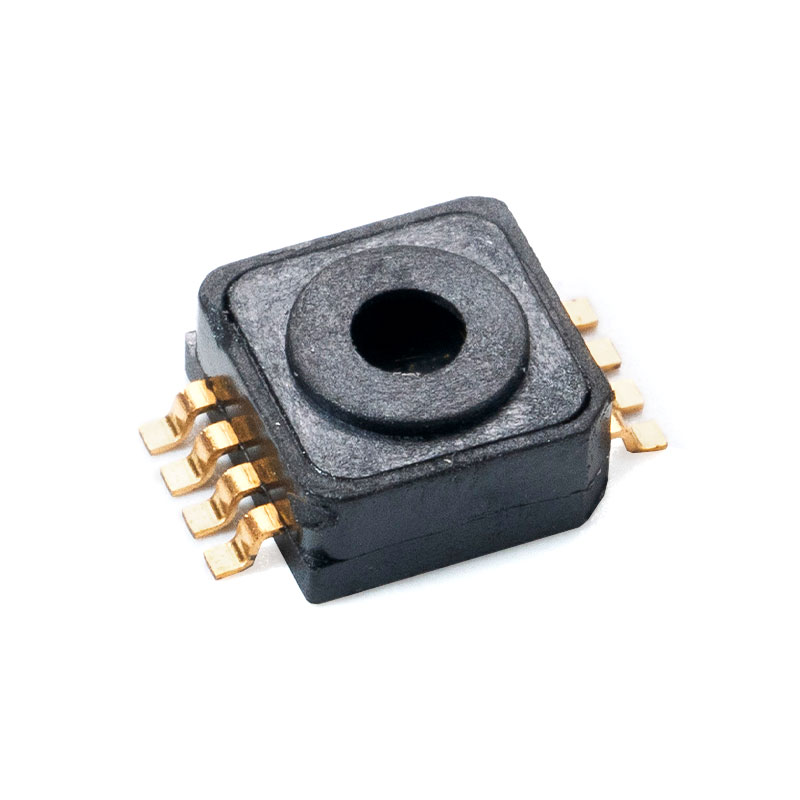

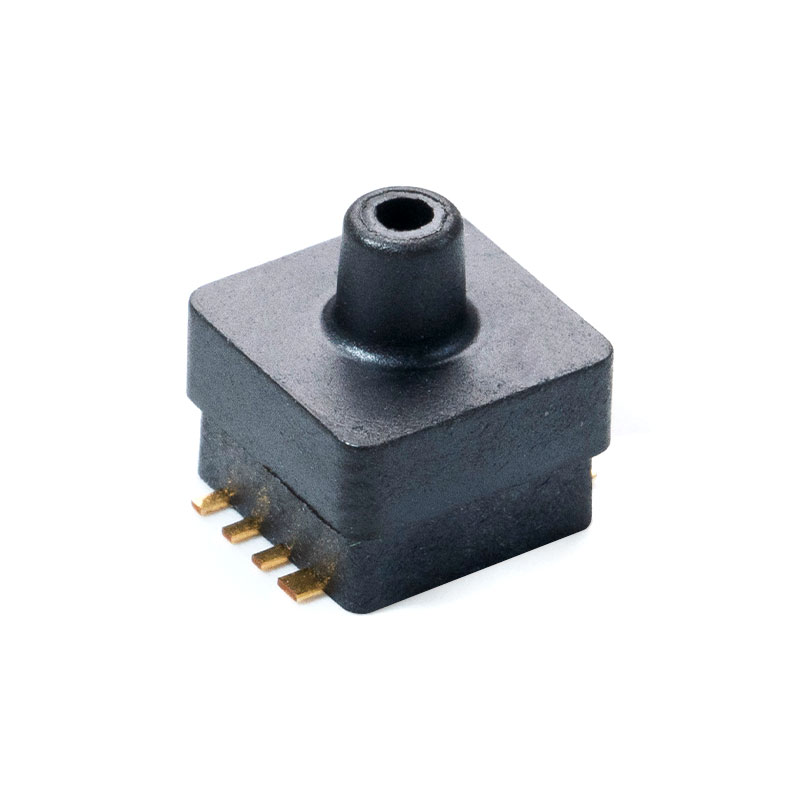

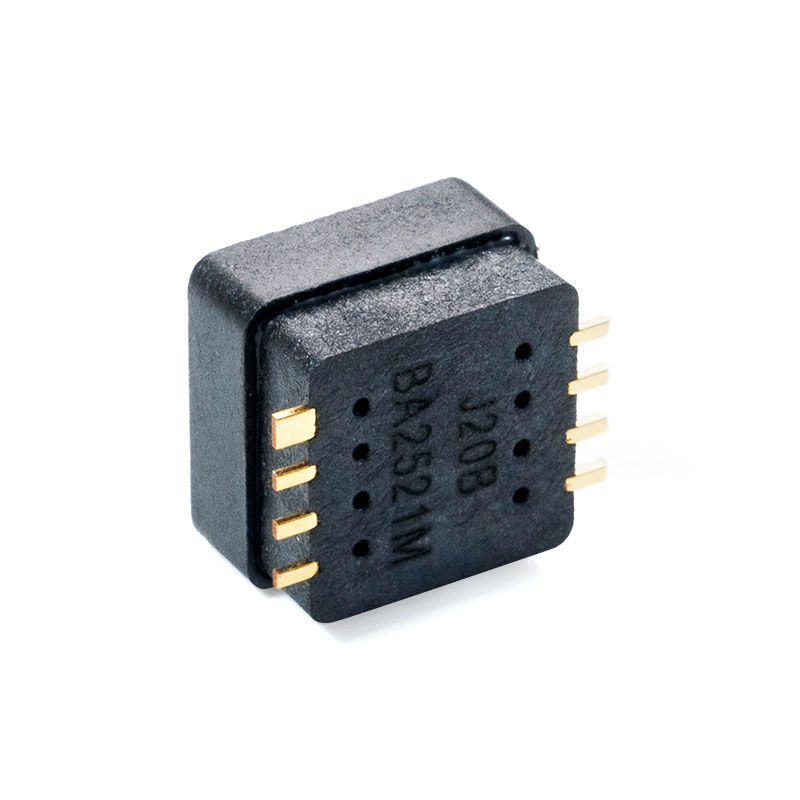

MCP-J20A, J20B, J20C Absolute pressure sensor

Description
The sensor market has launched calibrated absolute pressure sensor products. The MCP-J20 series is designed for pressure transmission in the intake manifold of automobiles and motorcycles
This product uses automotive-grade signal conditioning chips to calibrate and compensate for MEMS core output, and can convert pressure signals from 10kPa to 1000kPa into analog output signals with a customizable output range (0~5V). While ensuring the excellent reliability of the product, the two chips are integrated and packaged, greatly reducing the packaging size. At the same time, the conditioned product can provide standard output within the temperature range and accuracy range, eliminating the need for customers to calibrate the sensor.

Characteristic

The maximum error from 0 ° C to 85 ° C is 2.5%
Very suitable for microprocessors or microcontroller-based systems
Ultra small surface mount packaging
Temperature range: -40 ° C to+125 ° C
Range J20 (A) 10kPa~1000kPa optional J20(B)10kPa~400kPa
Proportional/Absolute Analog Voltage Output

Typical applications

Automotive applications (manifold pressure measurement)
Industrial control
Motorcycle pressure application
Hybrid and new energy vacuum-assisted sensors
CNG gas pressure detection
Pressure gauge

Ultimate rated value

Parameter	Symbol	Range	Unit
Simulate power supply voltage	VDO	-0.3 ~ 6.0	V
Digital Supply voltage	VDOF	-0.3 ~ 2.2	V
Working temperature range		-40 ~125	℃
Storage Temperature Range		-50 ~150	℃
Junction temperature		150	℃
ESD range	HBM	4KV	V

Note: Exceeding the absolute maximum rated value may cause permanent damage, and prolonged operation at the above absolute maximum rated value may affect the reliability of the device.

Electrical parameters

Table 1 Working characteristics (VS=5.0 Vdc, TA=25 ° C unless otherwise specified)

Characteristic	Sign	Minimum	Typical values	Maximum	Unit
Voltage	VS	4.75	5	5.25	Vdc
Power supply current	Io	—		3	mAdc
Minimum pressure output (0 ℃ to 85 ℃) VS=5.0 V	Voff	0.4	0.5	0.6	Vdc
Full range output (0 ℃ to 85 ℃) VS=5.0 volts	VFSO	4.4	4.5	4.6	Vdc
Full range (0 ℃ to 85 ℃) VS=5.0 volts	VFSS	3.8	4	4.2	Vdc
Accuracy (0 ℃ to 85 ℃)	—	—	—	2.5	%VFSS
