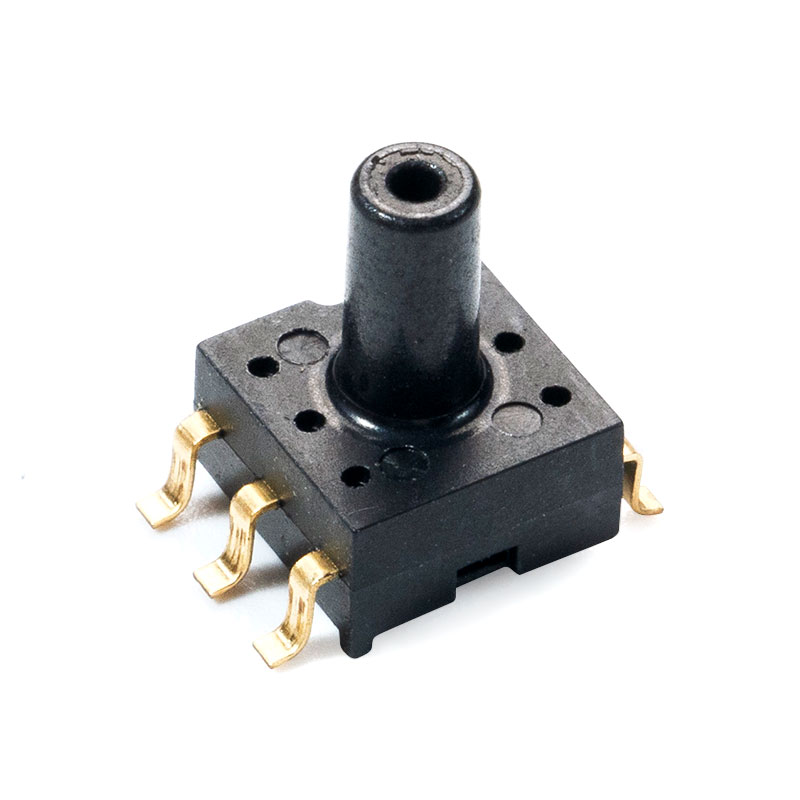

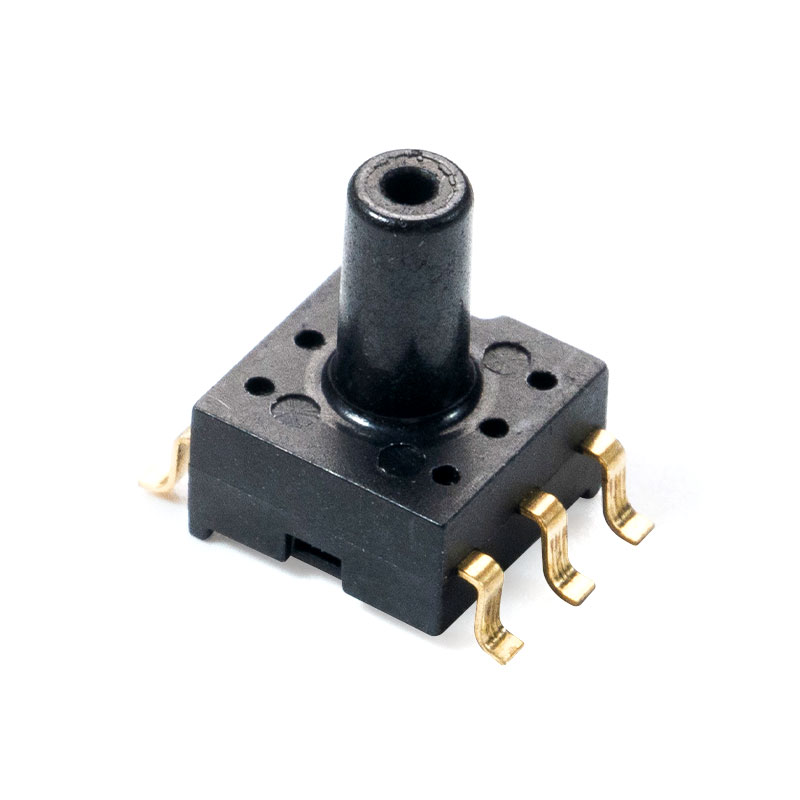

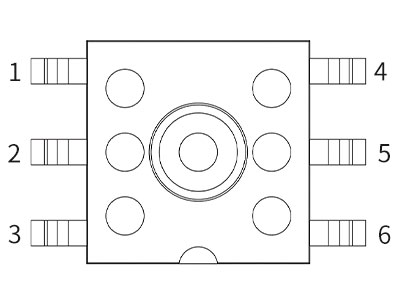

MCP-H10, MCP-H11 Low pressure sensor

General Description(MCP-H10)

The MCP-H10 series is a small-sized package (SOP) with a nozzle, which integrates signal amplification, nonlinearity, and temperature compensation for silicon piezoresistive pressure sensors. The MCP-H10 series pressure sensor is a product that uses advanced MEMS technology and is specifically designed for consumer electronics and medical applications. The pressure sensor can be directly soldered onto a PCB board, providing an accurate and high-amplitude analog voltage output signal that is proportional to the applied pressure.

Features

Measuring range: -100kPa~1000kPa
Absolute analog output with a wide linear range (typical values of 0.5V~4.5V) (note: output voltage can be customized)
Power supply voltage 5.0V (3.3V optional)
Operating temperature range -20 to +85 ℃
Storage temperature range -40 to +125 ℃

Typical Applications

Industrial use: pressure switches and pneumatic components
Medical use: blood pressure meter, oxygen generator
Water level detection of household appliances: washing machines, dishwashers, vacuum cleaners
Air pressure control: clean rooms and smoking rooms
Other: Air pressure medium pressure sensing device

Structure performance

Pressure-sensitive chip: silicon
Lead wire: gold wire
Sealing shell: PPS material
Pin: Copper plated with gold
Net weight: approximately 0.3 grams

Product description(MCP-H11)
MCP-H11 The series is a differential pressure sensor product with small package size (SOP) with single tube port, internal integrated amplifier, and multi-stage pressure and temperature compensation. Mainly targeting the consumer and medical application markets.
High-performance digital output pressure (24-bit) and temperature (24-bit) sensors designed to meet the strictest requirements of OEM customers.

Characteristic
Measurement range:-100kPa~1000kPa
Wide linear range I2C output
Wide voltage power supply (3V-5.5V)
Working temperature range -20 to +85 ℃
Storage temperature range -40 to +125 ℃

Typical applications
Industrial use: pressure switches and pneumatic components
Medical use: blood pressure monitor, oxygen concentrator
Air pressure control: clean room and smoking room
Other: Air pressure medium pressure sensing device
Net weight: approximately 0.3 grams

Structural performance
Pressure sensitive chip: Silicon material
Lead: Gold wire
Encapsulation shell: PPS material
Pin: Copper Silver
