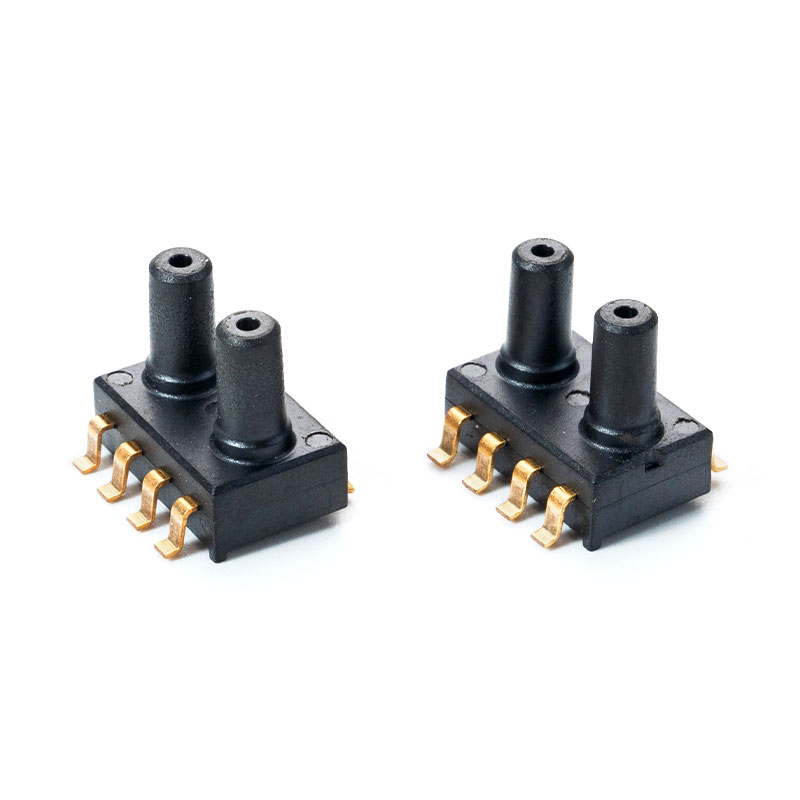

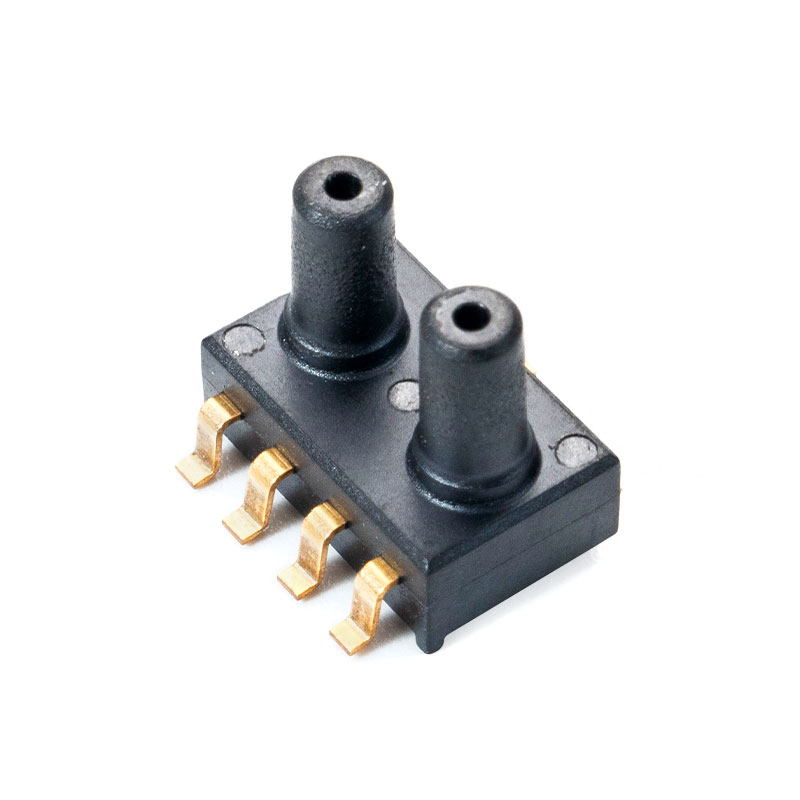

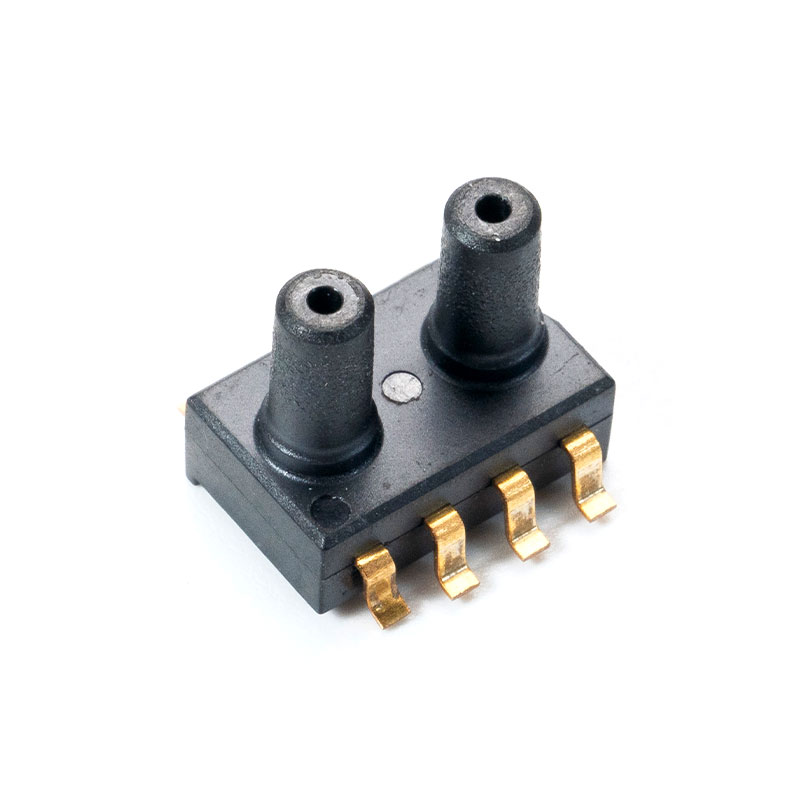

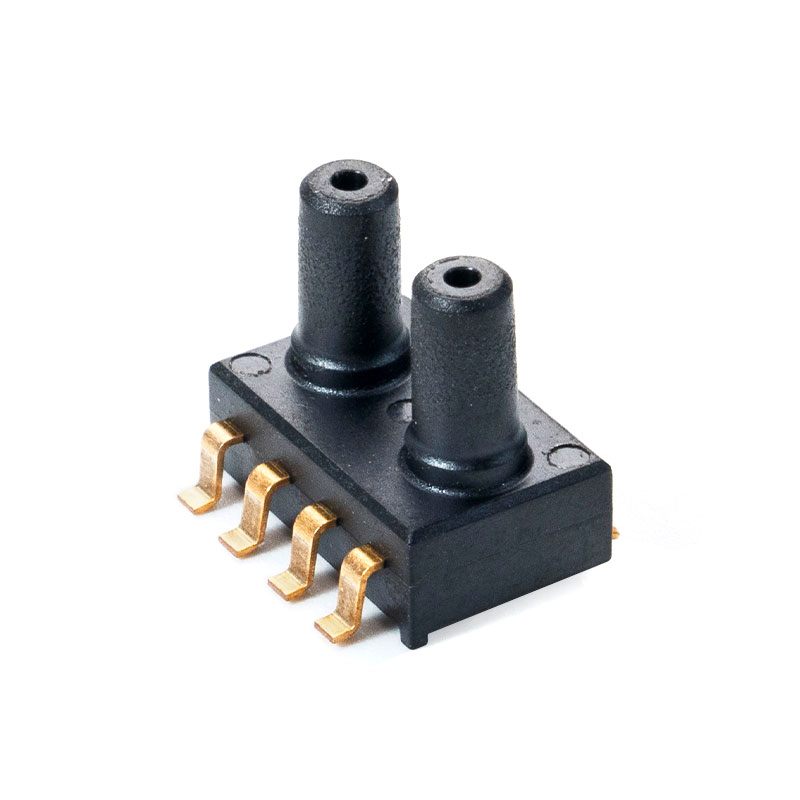

MCP-H21 Digital signal sensor

Descriptions
The MCP-H21 series is a small-sized package (SOP) with dual ports, which integrates signal amplification, nonlinearity, and temperature compensation for silicon piezoresistive differential pressure sensors. The MCP-H21 series pressure sensor is a product designed specifically for consumer electronics and medical applications using advanced MEMS technology. The pressure sensor can be directly soldered onto a PCB board, providing a linear and high-precision 24-bit digital pressure signal and a 16-bit digital temperature signal.

Features
Supply voltage: 1.8V to 5.5V
Pressure range: -100kPa to 200kPa
Standby current: <0.2μA
Operation temperature: -20 to +85℃
High-speed I²C digital output interface
Fully data compensated

Applications
Blocked Filter Detection
Altitude and Airspeed Measurements
Medical Instruments
Fire Suppression System
Panel Meter
Air Movement/Environmental Controls
Pneumatic Controls

Structure performance
Pressure sensitive chip: silicon
Lead wire: gold wire
Sealing shell: PPS material
Pin: Copper plated with gold
Net weight: approximately 0.3 grams

Pressure and Temperature Characteristics

Table1: Pressure Output Characteristics @ VDD = 5.0V, T = 25℃ unless otherwise noted

Parameter	Symbol	Conditions	Min	Typ.	Max	Unit
Pressure Measurement Range¹	PFS		-100		200	Kpa
Pressure Resolution		Pressure		0.05		%FS
Pressure Accuracy²		At 25℃	-0.1		0.1	%FS
Total Error Band³	TEB	From 25℃ to 60℃	-0.3		+0.3	%FS
Total Error Band³	TEB	From -40℃ to 85℃	-1		+1	%FS
Long Term Drift		After a period of 1 year		±0.15		%FS
Reflow soldering impact		IPC/JEDEC J-STD-020C		±0.2		%FS

1. The high-pressure side is on the marked side.
2. The maximum deviation from a best fit straight line (BFSL) fitted to the output measured over the pressure range at 25C. Includes all errors due to pressure non-linearity, hysteresis, and non-repeatability.
3. Total pressure error band includes all accuracy errors, thermal errors over the compensated temperature range and span and offset calibration tolerances. For ideal sensor output with respect to input pressure and temperature, TEB values are valid only at the calibrated supply voltage.

Table2: Temperature Output Characteristics @ VDD = 5.0V, T = 25°C unless otherwise note

Parameter	Symbol	Conditions	Min	Typ.。	Max	Unit
Operation Temperature	T_OP		-20		85	℃
Temperature Absolute Accuracy		-10℃ to + 50℃		±1.0		℃
Max Error with Power		Power supply from 1.8V to 5.5V			±0.1	℃
Temperature Resolution of Output Data				0.01		℃

Electrical Characteristics

Table3: DC Characteristics @VDD=5.0 V, T=25℃ unless otherwise note

Parameter	Symbol	Conditions	Min	Typ.	Max	Unit
Average Operation Current	I_DDAVP	One Conversion per Second		4.5	6.4	μA
Peak Current	I_PEAK	Pressure conversion		1.5		mA
Peak Current	I_PEAK	Temperature conversion		0.95		mA
Standby Supply Current	I_DDSTB	At 25℃			0.2	μA
Serial Data Clock Frequency	f_SCLK	I²C protocol, pull-up resistor of 4.7k		100	400	kHz
Digital Input High Voltage	VIH		0.8			V
Digital Input Low Voltage	VIL				0.2	V
Digital Output High Voltage	V_OH	IO = 0.5 mA	0.9			V
Digital Output Low Voltage	V_OL	IO = 0.5 mA			0.1	V
Input Capacitance	C_IN				10	pF
I2C Pull-Up Resistors	R_PU		3.3	4.7	10	KΩ

Absolute Maximum Rating

Table 4: Absolute Maximum Rating

Parameter	Symbol	Conditions	Min	Max	Unit
Overpressure	P_MAX			3X
Supply Voltage	V_DD		-0.3	6.5	V
Interface Voltage	V_IF		-0.3	VDD+0.3	V
Storage Temperature Range	T_STG		-40	150	℃
Maximum Soldering Temperature	T_MS	10-second maximum		250	℃
ESD Rating		Human body model	-2	+2	kV
